Top LED Headlight Kits Under $100 on Amazon Tested
An early BulbFacts Amazon LED comparison where popular under-$100 kits were purchased and tested for real brightness, beam pattern, glare, color temperature, heat, and value.
Review Scope
This was an early Amazon-focused test of popular under-$100 LED headlight kits. The article focused on separating high Amazon review counts from actual headlight performance.
Original Takeaway
- Cougar Motor was very popular, but the measured output did not match expectations.
- Beamtech stood out for beam quality and low glare.
- Lightening Dark produced the strongest output among the products highlighted in this Part 1 article.
Historical availability note: This roundup is based on BulbFacts version 1.0 testing from 2018. Some products in this article may now be discontinued, renamed, replaced, or unavailable from the original seller. Use this page for historical test context, then check the current LED chart and recommendation pages before buying.
Newest video roundup: For the latest LED video overview, see The Ultimate LED Headlight Kits of 2023, then use the live chart for current rankings and availability.
When it comes to headlights, people want to see better and be seen better. In 2018, Amazon was full of LED headlight kits with glowing reviews, so BulbFacts bought popular kits and tested them instead of relying on listing claims.
The test included the most visible and highly rated kits available at the time. No products were sponsored. The goal was to show real facts and statistics so people could decide whether the kits were actually worth installing.
Because there were many kits in the original test group, the video skipped ahead to the products that were most relevant: the popular Cougar Motor kit, the Beamtech fanless kit with a clean beam, and the Lightening Dark kit with the strongest output.
Products Covered In This Review
Cougar Motor
The most popular kit in the original video, but it only measured modestly brighter than halogen on low beam and was weaker than halogen on high beam in the 2018 setup.
Beamtech
The stronger practical recommendation for drivers who wanted both low-beam and high-beam performance at a low price, thanks mostly to a very clean beam pattern.
Lightening Dark LED
The output standout in this Part 1 article, measuring about 2.7 times brighter than stock halogen low beams while keeping a usable beam shape with careful adjustment.
Popular On Amazon Did Not Mean Best In Testing
The Cougar Motor kit was the visibility winner on Amazon, but the original test results showed why independent measurement matters.
The Cougar Motor kit was the most popular LED headlight kit on Amazon at the time of the video. Based on the listing popularity, it would have been easy to expect very high output.
In the 2018 BulbFacts test, that did not happen. Compared with an OEM halogen bulb, it was only about 15% brighter at the low-beam hotspot and about 18% dimmer in the high beam.
The beam pattern was decent, but it was focused higher than the halogen reference. That meant re-aiming was important. Leaving the headlights aimed as-is could create glare for oncoming drivers and still leave the useful hotspot in the wrong place.

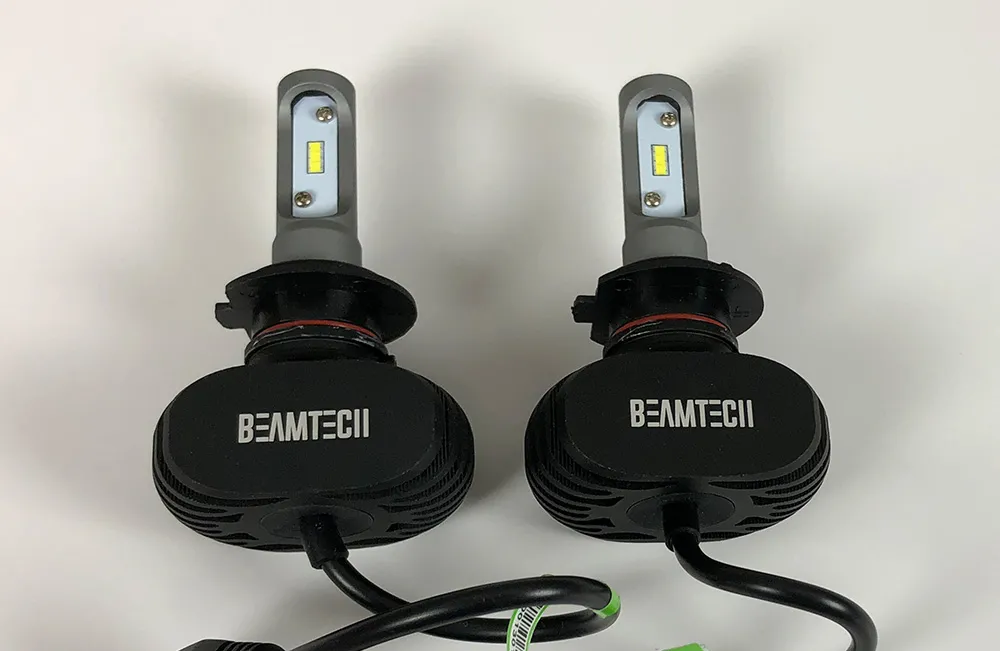

Beamtech Delivered The Cleanest Practical Beam
Beamtech was not the brightest product in the group, but the beam shape made it one of the most useful choices in this early Amazon test.
If you wanted good low-beam and high-beam performance without breaking the bank, the original article pointed to Beamtech.
It ranked second in low-beam performance in this Part 1 article at about 49% brighter than stock halogen, or roughly 1.5 times the hotspot output. High-beam performance was about 23% brighter than stock.
The stronger reason to like Beamtech was the beam. It had the best low-beam pattern score from the highlighted products, with almost no glare and no re-aiming needed in that test setup. The smaller LED diodes were lined up more like a halogen filament, which helped the optics work correctly.
It was the only fanless kit tested up to that point, so it ran hotter than fan-cooled kits at about 163°F, but that was not considered critical in the original test. Color temperature measured 6700K, close to the claimed 6500K.

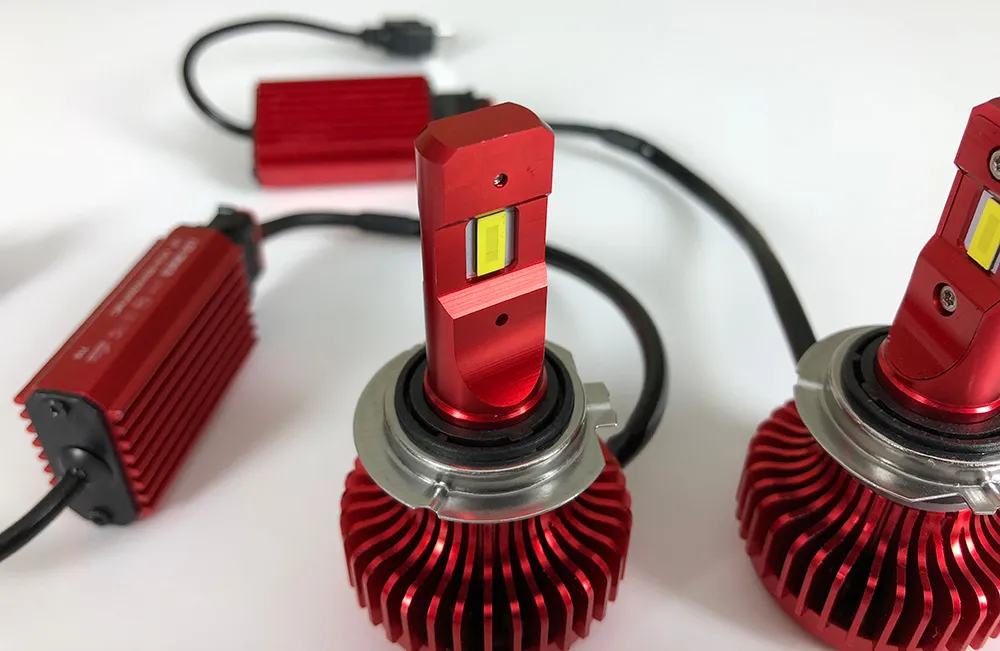

Lightening Dark Was The Big Output Surprise
The Lightening Dark kit produced the strongest low-beam output in the original article while still keeping a usable beam with careful orientation.
The Lightening Dark LED kit was the performance standout in this Part 1 video. It compared well against premium kits that cost several times more at the time.
In the original low-beam test, it measured about 172% brighter than stock halogen, or roughly 2.7 times the low-beam output. The article attributed the high output to a claimed Philips TX1860 LED diode and the very high lux numbers observed in the test.
The beam pattern and cutoff were also very good, but not totally hands-off. The original guidance was to re-aim and rotate the LEDs so the emitters faced left-to-right in the headlight. That helped keep the hotspot accurate and reduced glare for oncoming drivers.

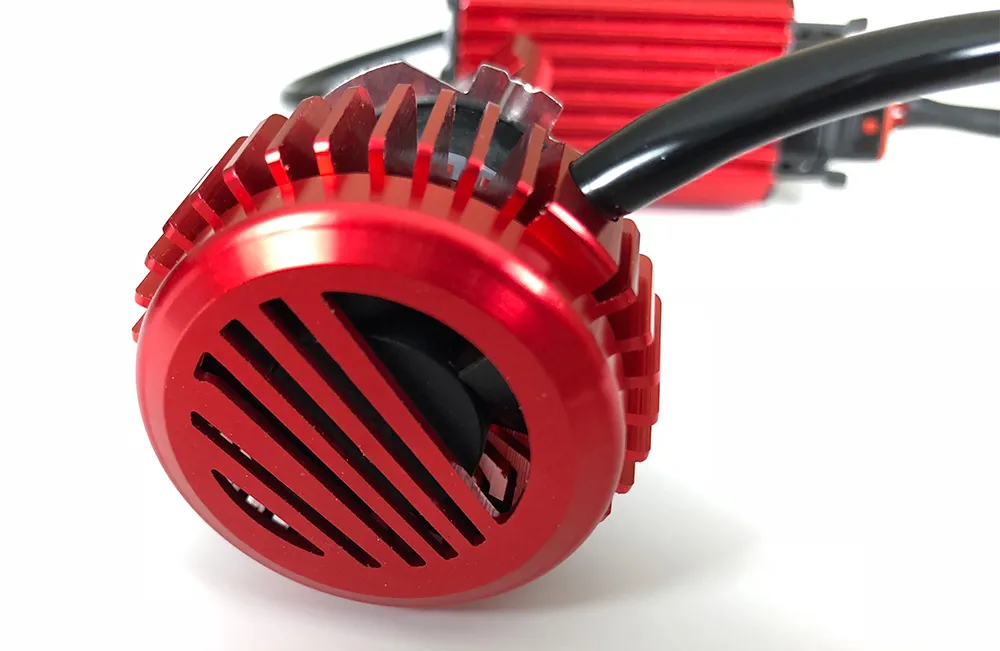

Color temperature tested near the claimed 6000K at about 6050K. The fan-cooled design held temperature to about 97°F in the original test.
Beam Aim Still Decided Whether The Upgrade Was Safe
The original video made a point that raw brightness was not enough, especially with early LED designs.
The other kits in the early low-beam test were generally only 12-30% brighter than halogen, and many had poor beam patterns. The advice was clear: if the beam pattern is bad, the kit is not a good low-beam upgrade no matter how bright it looks up close.
Before installing any LED retrofit, mark the original halogen cutoff on a wall, install the LED, and confirm the beam stays in the right place. If the hotspot shifts upward or the cutoff gets messy, re-aim or choose a better product.
This early test helped set the tone for later BulbFacts reviews: independent measurements, real beam photos, glare checks, and practical fitment details matter more than listing claims or review counts.
Buying through affiliate links helps fund BulbFacts testing, equipment, and future product reviews at no extra cost when purchases qualify.
Full Test Details & Facts From The 2018 Amazon Part 1 Test
Legacy version 1.0 article values preserved for historical context. Use the current chart for current product rankings and comparable data.
Cougar Motor
- Original role
- Most popular Amazon kit in the video
- Low beam result
- About 15% brighter than OEM halogen
- High beam result
- About 18% dimmer than OEM halogen
- Beam note
- Decent shape, but focused high and needed re-aiming
Beamtech
- Original role
- Clean beam recommendation
- Low beam result
- About 49% brighter than stock halogen
- High beam result
- About 23% brighter than stock halogen
- Tested Kelvin
- 6700K
- Temperature
- 163°F
- Cooling
- Fanless
Lightening Dark
- Original role
- Highest output recommendation
- Low beam result
- About 172% brighter than stock halogen
- Output comparison
- About 2.7 times halogen low-beam output
- Tested Kelvin
- 6050K
- Temperature
- 97°F
- Install note
- Rotate LEDs left-to-right and re-aim for best hotspot
Testing Context
- Original test bench
- BulbFacts version 1.0
- Article focus
- Popular under-$100 Amazon LED headlight kits
- Sponsorship
- No sponsored products
- Current buying guidance
- Use the live chart and recommendations before purchasing
Facts listed above are based on BulbFacts testing processes at the time of this review. See how we test for current procedures and test-bench changes.
