Vehicle headlight guide · Integrated factory LED

2026 Hyundai Palisade Headlights & Factory LED Guide

The Palisade uses integrated LED projector headlights. Here is how the factory system performs and what to check if it needs service.

Low beam
Integrated LED
High beam
Integrated LED
Factory setup
LED Projector
10.0/10BulbFacts OE Visibility Score
Factory performanceExcellent Factory Lighting

This vehicle uses integrated factory LED headlights, so there is no conventional low- or high-beam bulb to replace.

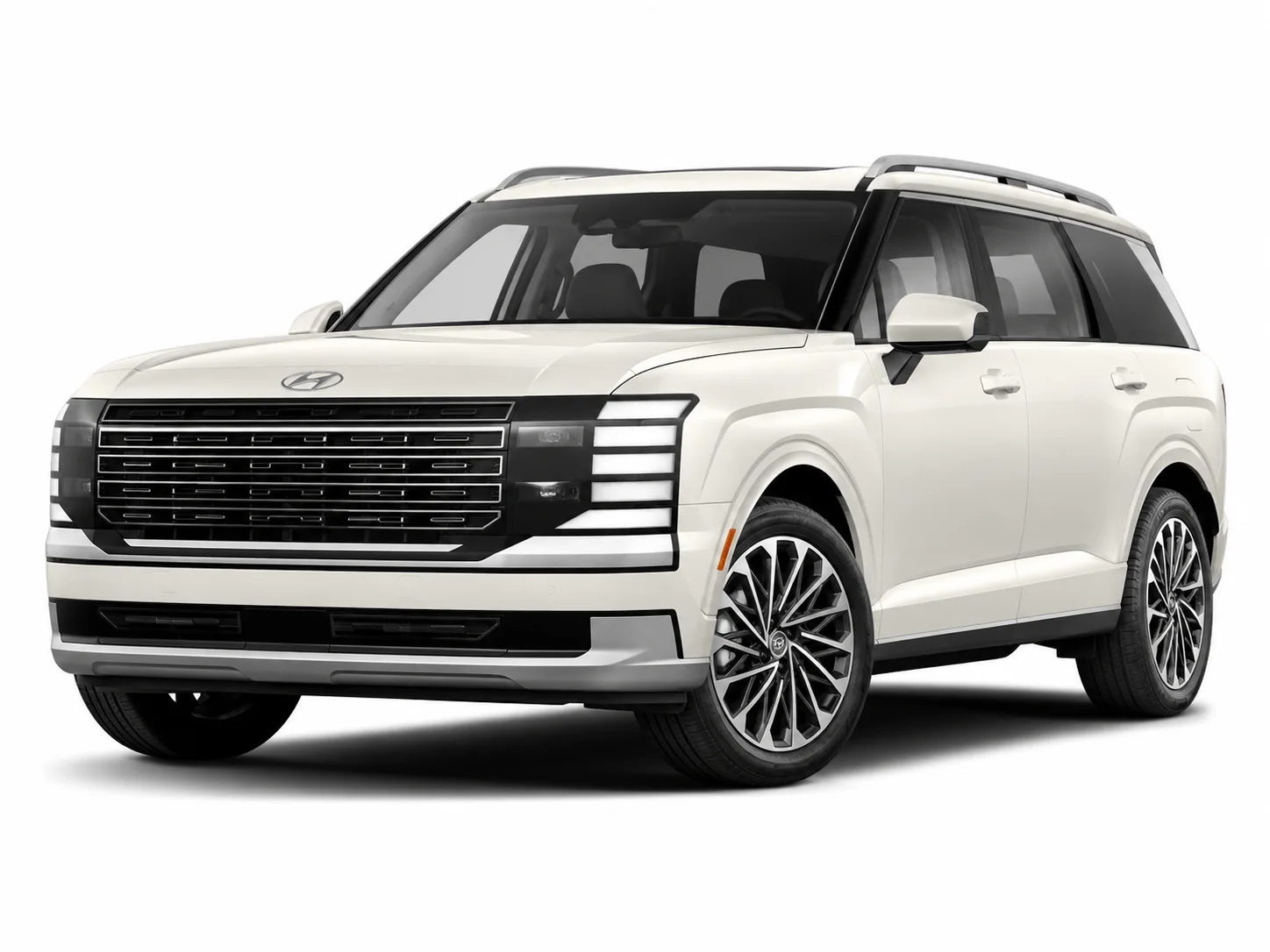

2026 Hyundai Palisade vehicle image

How the factory headlights perform

Excellent Factory Lighting

Stored measurements show excellent low- and high-beam coverage, full curve-coverage and glare-control points, and no recorded low-beam glare exceedance.

Peak low-beam reach
367 ft
Compared with tested SUVs & Crossovers74th percentile
Compared with all tested vehicles77th percentile
Peak high-beam reach
590 ft
Compared with tested SUVs & Crossovers94th percentile
Compared with all tested vehicles95th percentile
Curve visibility
15 / 15
Glare control
10 / 10No recorded low-beam glare exceedance
High-beam assist
Yes
Curve-adaptive lighting
No

Applies to all 2026 trims represented in this record.

Factory system guidance

Integrated LED headlights are not conventional replaceable-bulb systems. The performance results above describe the selected factory configuration.

LED Projector

Low beam: Integrated LED · High beam: Integrated LED

Keep the factory LED system

Keep the factory LED projector system when it is operating normally and aimed correctly.

If the factory system needs service

If a headlight is failed, uneven, or weak, check aim, wiring, the driver/module, moisture, and assembly condition before ordering vehicle-specific parts.

Other bulbs

Available exterior and interior lighting data for this model year.

Daytime running light
Integrated LEDIntegrated / non-replaceable
Center position light
Integrated LEDIntegrated / non-replaceable
Rear combination / tail light
Integrated LEDIntegrated / non-replaceable
Center high-mount stop light
Integrated LEDIntegrated / non-replaceable
Technical details and sources

Fitment, factory-system research, and BulbFacts product tests remain separate evidence. A matching bulb size does not by itself make a conversion a vehicle-specific recommendation.

Available manufacturer specifications and public factory-headlight records list LED projector low and high beams across 2026 Palisade trims.

Manufacturer specifications and public factory-headlight records list the same LED projector headlight type across 2026 trims. Confirm module and assembly service parts by VIN.

PositionBulb or systemEvidence status
Low beamIntegrated LEDIntegrated / non-replaceable
High beamIntegrated LEDIntegrated / non-replaceable

Each model year opens its own BulbFacts record. Bulb sizes and factory systems are not carried over from adjacent years.

Fitment note: Verify the installed bulb, connector, housing, and factory system before ordering. A bulb-size match is not automatically a conversion recommendation or proof of vehicle-specific testing.
