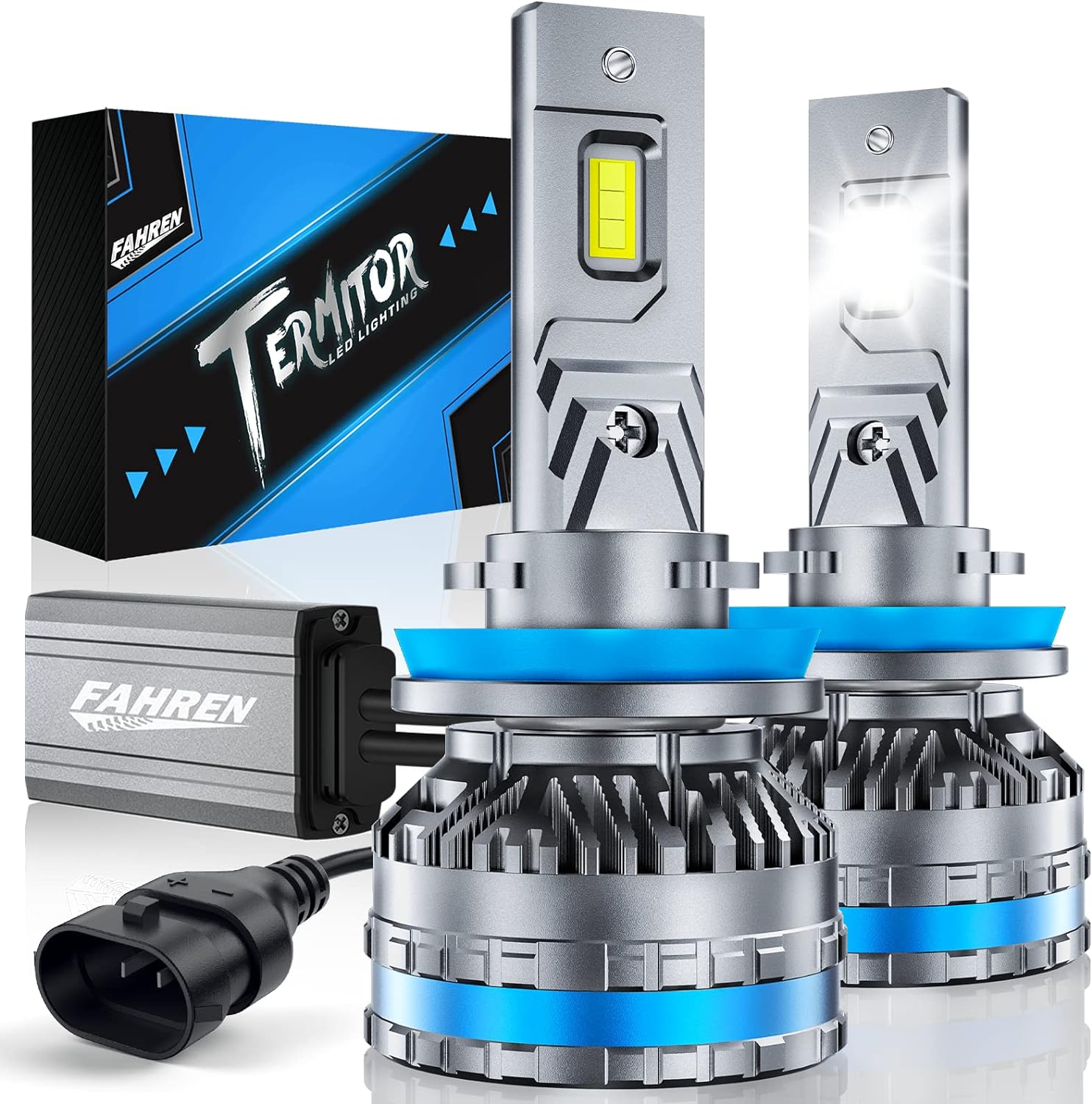

Fahren Termitor LED Headlight Kit Review
A convincing budget-value LED with strong reflector output, useful projector performance, excellent warmed-up stability, and controlled power draw—balanced by a cool 6500K color, a short warranty, and reflector beam control that remains housing-dependent.
- Reflector performance
- 5.9BulbFacts score · 5.0 baseline
- Projector performance
- 4.8BulbFacts score · 5.0 baseline
- Measured output
- 4,860 lmper bulb · about 9,720 lm per pair
- Color temperature
- 6,500 Kmeasured
Our verdict
The Fahren Termitor is the budget-friendly reflector recommendation in the current chart. Its 1,273-lux reflector low beam, 2,164-lux high beam, strong measured lumen output, and 1.5% warmed-up drop are unusually capable around the recorded $69 price. Projector results are also useful for the money, but the cool color, one-year warranty, unfinished lifespan record, and only moderately controlled reflector pattern explain the low-cost tradeoff.
What we liked
- Strong reflector output for the price, including 1,273 lux on low beam and 2,164 lux on high beam.
- Useful projector performance with a separate 4/5 beam-pattern rating.
- Only a 1.5% output drop from two to 30 minutes, plus 4,860 measured lumens per bulb.
What to consider
- Reflector glare measured 284 lux and the separate pattern rating was 3/5, so housing choice and aim still matter.
- The 6500K color is cool, and the external drivers plus active fans require rear clearance.
- The warranty is one year; lifespan, DRL behavior, RFI, and exact-vehicle compatibility remain unconfirmed.
Build quality

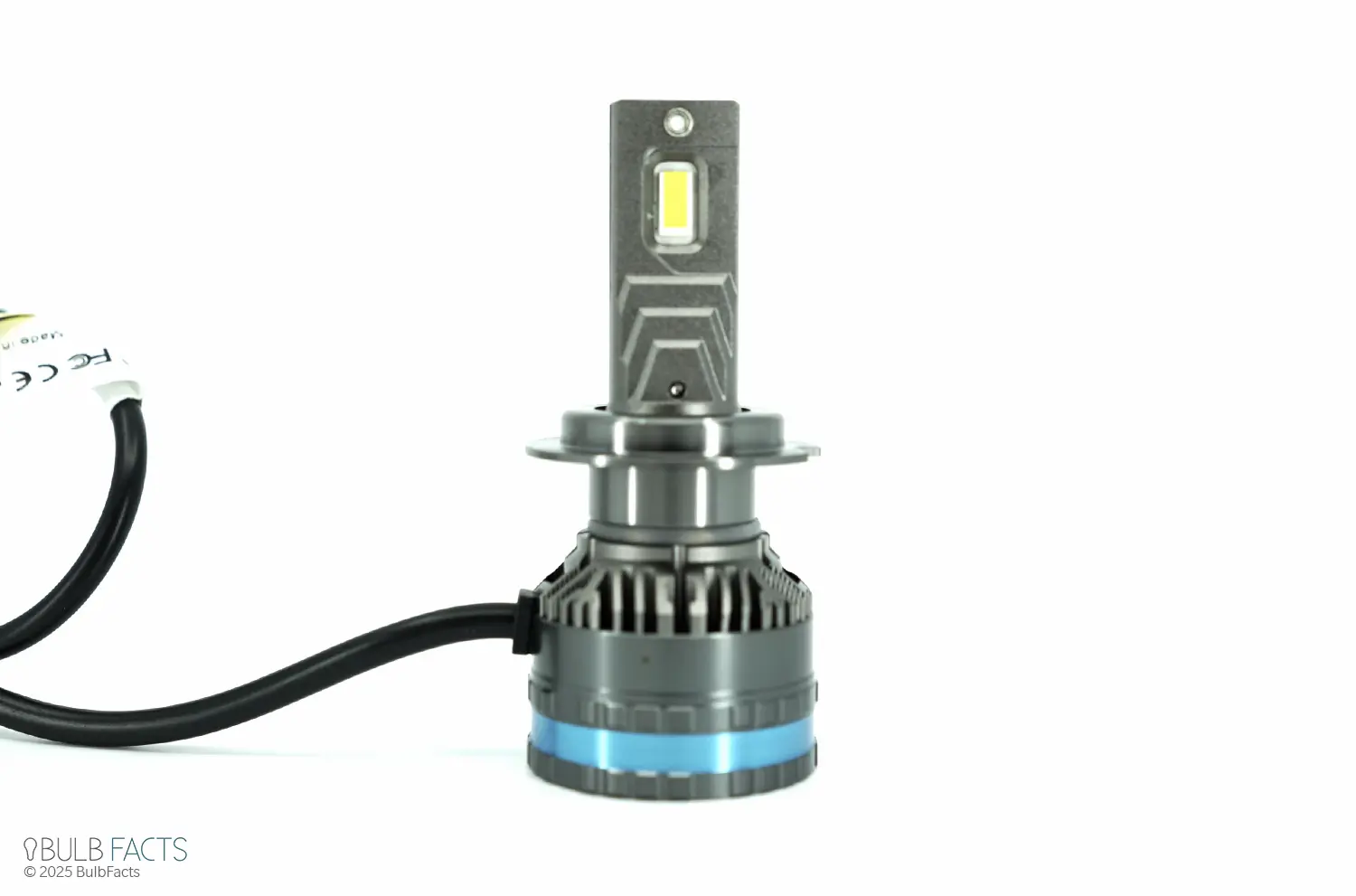

The Termitor is built as a performance-focused budget kit rather than a compact all-in-one replacement. Each bulb has a narrow, flat emitter board, a rotatable H7 collar, a finned body, and an active rear fan, while the electronics sit in a separate metal driver module.
The recorded six-emitter-per-bulb layout keeps the light source relatively narrow, and the H7 version adjusts in one-degree increments. That gives an installer useful orientation control in a housing that is sensitive to rotation, though it does not guarantee an ideal beam in every headlight.
The parts and wiring feel credible for the price, but the measured beam, electrical, thermal, and long-term results below determine the recommendation. The packaging is supporting context rather than evidence of performance.
Reflector headlight performance
Reflector output is the main reason the Termitor is the current budget recommendation: the reference fixture produced strong low- and high-beam intensity for the price, with usable rather than class-leading glare and pattern control.
Reference-housing context: These version 2.1 bench results describe the BulbFacts reflector fixture. Seating, emitter orientation, lens condition, aim, and vehicle electronics can change the result in an exact vehicle.
Gray dots show every scored kit. Named markers are current BulbFacts recommendations. The 5.0 reference is a baseline, not a maximum.
Reflector performance score 5.9 compared with 54 scored LED kits and the 5.0 reference baseline.
- Low-beam hotspot
- 1,273 luxper bulb
Reflector low-beam output of 1,273 lux compared with 54 scored products.
- High-beam output
- 2,164 luxper bulb
Reflector high-beam output of 2,164 lux compared with 54 scored products.
- Glare measurement
- 284 luxreference housing
Reflector glare measurement of 284 lux compared with 22 products with recorded glare. Lower is better.
- Beam pattern
- 3 / 5separate pattern rating
Reflector beam-pattern rating of 3 out of 5 compared with 22 products with recorded ratings. Higher is better.
Low beam measured 1,273 lux per bulb, about a 241% improvement over the recorded halogen reflector reference. High beam measured 2,164 lux per bulb, about 147% above its reference. Those are strong results at this price and explain the 5.9 performance score.
Reflector glare measured 284 lux, and the beam received a separate 3 / 5 pattern rating. The photographs show a useful hotspot and forward reach, but the pattern is not as refined as the cleanest premium reflector choices. Proper seating and careful aim remain important.
The 5.9 performance score uses 5.0 as a reference baseline, not a maximum, and is not a 5.9-out-of-five star rating. The 3 / 5 value rates beam shape separately. These reference-fixture results do not promise the same glare or distribution in every vehicle housing.
Projector headlight performance
The Termitor remains useful in the projector fixture, where many inexpensive LEDs lose much of their advantage. Its intensity is not class-leading, but the result is a meaningful budget upgrade with a separately recorded 4/5 pattern rating.
Reference-housing context: These results describe the BulbFacts projector fixture, not a guarantee for every vehicle projector. Optical design, bulb seating, focus, aim, and lens condition remain important.
Gray dots show every scored kit. Named markers are current BulbFacts recommendations. The 5.0 reference is a baseline, not a maximum.
Projector performance score 4.8 compared with 54 scored LED kits and the 5.0 reference baseline.
- Low-beam hotspot
- 575 luxper bulb
Projector low-beam output of 575 lux compared with 54 scored products.
- High-beam output
- 575 luxper bulb
Projector high-beam output of 575 lux compared with 54 scored products.
- Glare measurement
- Not recordedprojector test
- Beam pattern
- 4 / 5separate pattern rating
Projector beam-pattern rating of 4 out of 5 compared with 47 products with recorded ratings. Higher is better.
Projector low beam measured 575 lux per bulb, about a 150% improvement over the recorded halogen projector reference. High beam also measured 575 lux per bulb, about 30% above its reference.
The projector photograph shows a defined shape, usable hotspot, and practical cutoff behavior for a budget product. The separate 4 / 5 pattern rating reflects that beam shape; it does not replace the 4.8 performance score or stand in for a projector glare measurement, which was not recorded.
Stronger projector products exist in the current chart, but the Termitor makes sense when low purchase cost matters more than reaching the top of the output scale. Exact performance still depends on the vehicle projector, seating, focus, and aim.
Output, color, and stability
The measured lumen result supports the beam tests, while the cool 6500K color and 1.5% warmed-up drop define how the Termitor looks and behaves after reaching operating temperature.

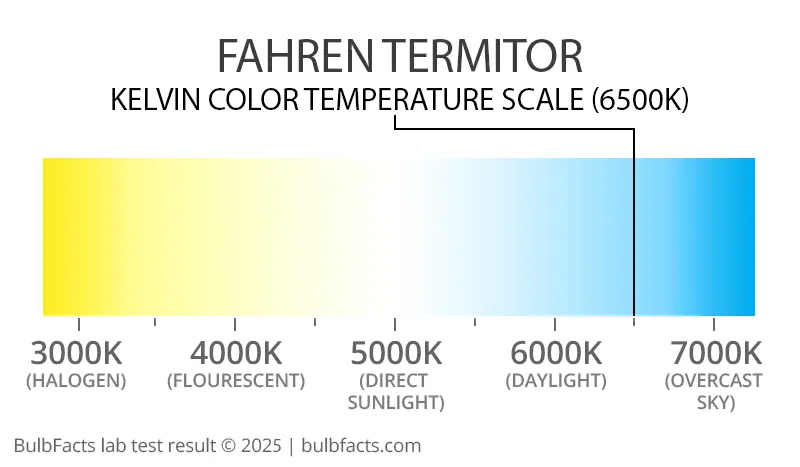

Fahren Termitor Kelvin

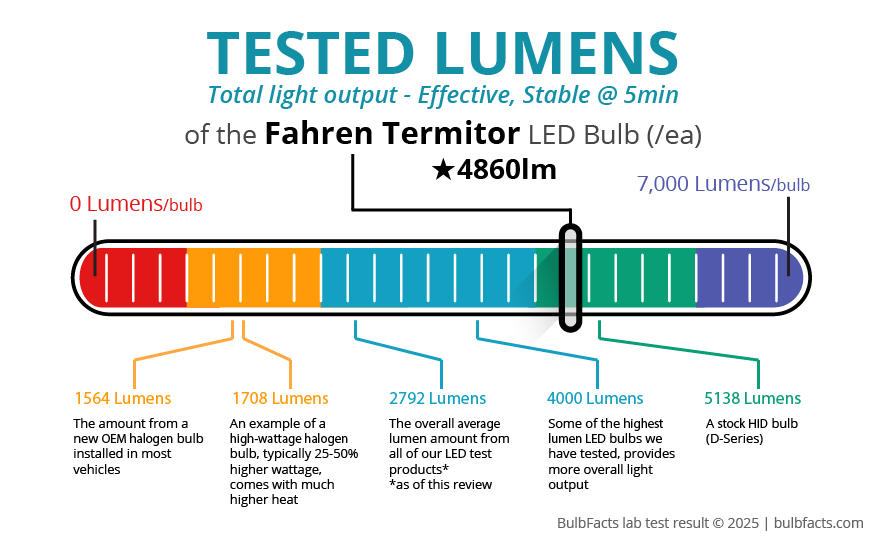

Fahren Termitor lumens
Color temperature measured 6,500K. That creates a cool white appearance with a slight blue tint compared with a neutral 5000K LED. Some buyers prefer the crisp look, while a warmer or more neutral light may be more comfortable in rain, snow, fog, or wet-road reflections.
The current chart records 4,860 measured lumens per bulb, or about 9,720 lumens per pair when doubled. Lux and lumens measure different things, but the strong reflector and useful projector hotspot results show that the open-air lumen number is supported by housing tests.
From two to 30 minutes, output dropped only 1.5%. That is excellent warmed-up stability for any LED kit and especially encouraging at this price. It does not, by itself, establish long-term lifespan, and a separate cold-start-to-30-minute percentage was not recorded.
Installation and cooling

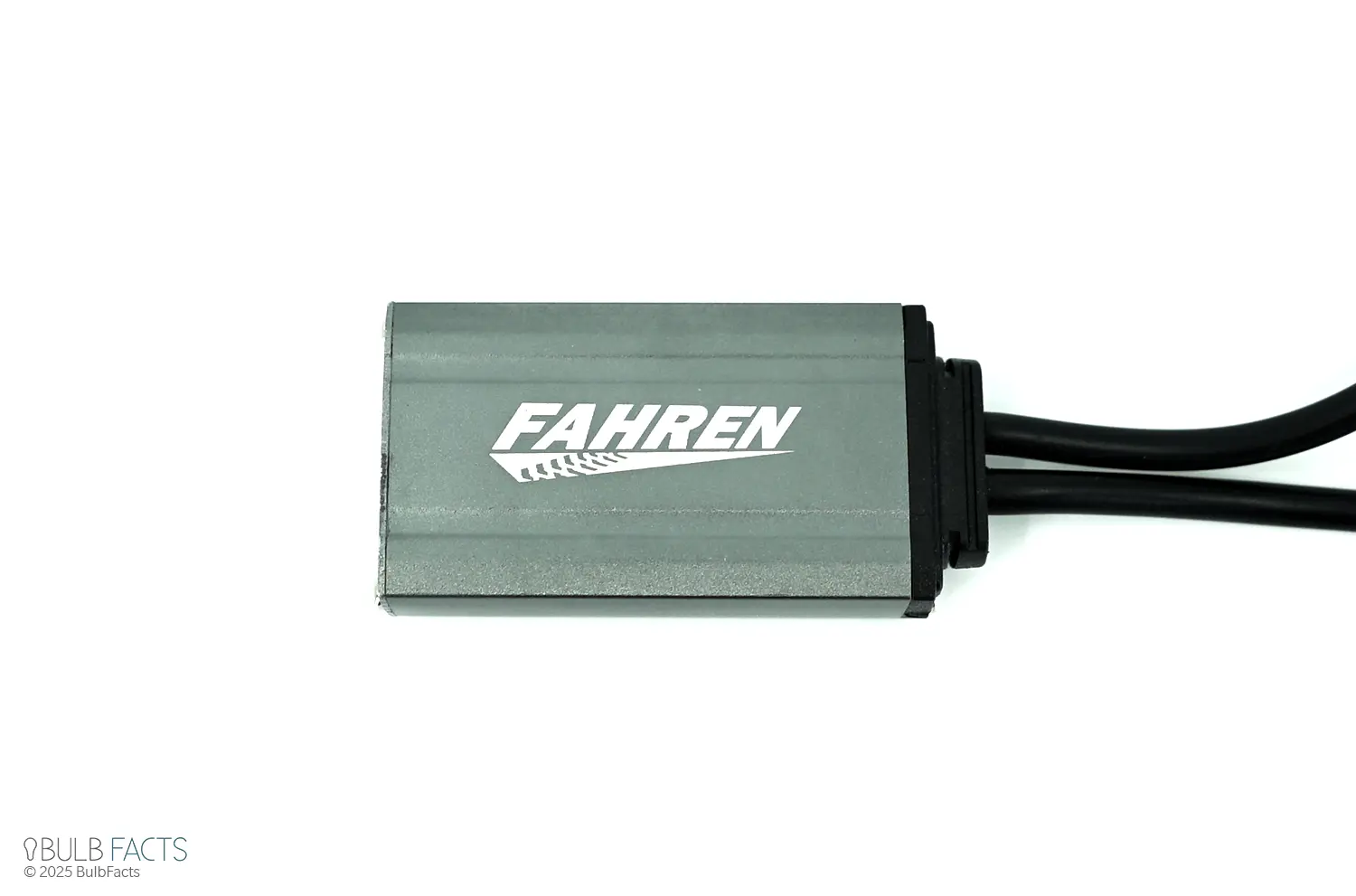

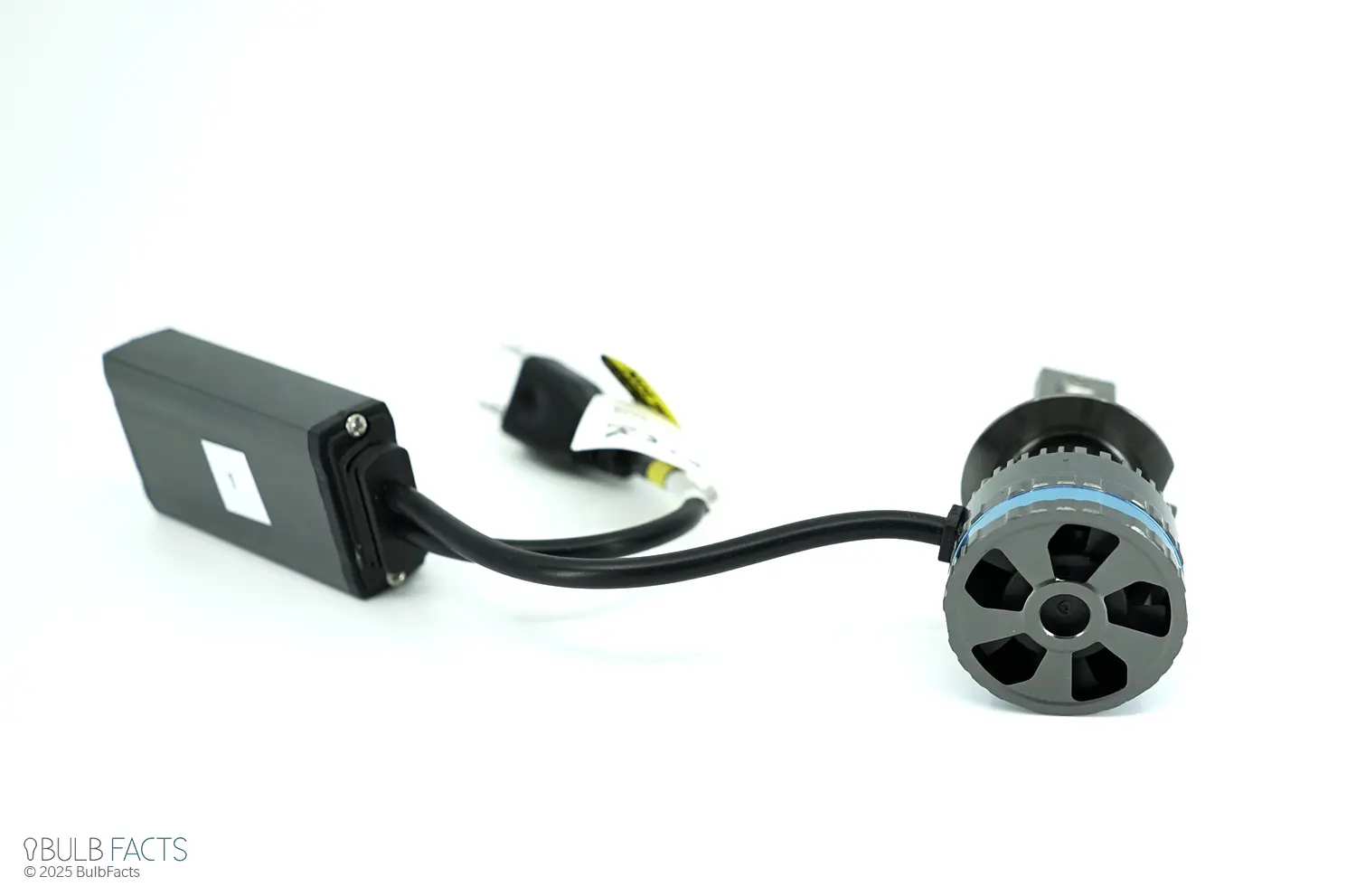

The external drivers and active rear fans support the measured output, but the per-bulb draw, driver dimensions, fan noise, and vehicle-electronics behavior all need checking before ordering.
Per-bulb draw
30-min temp
Fan noise
Physical size and fit
The bulb measures 33 mm at its widest point, 36 mm from the base to the rear, and 40 mm across the diode-handle dimension. The external driver is recorded at 58 × 30 × 14 mm. The complete installation needs room for the bulb, fan, driver, wiring, connector, and dust cover without pinching or blocking airflow.
The H7 collar is recorded as adjustable in one-degree increments. Recorded sizes are H1, H4, H7, H8, H9, H11, H13, 9003, 9005, 9008, and 9012. A matching size alone does not confirm exact-vehicle fitment.
Power draw and cooling
Electrical draw measured 42.5 watts per bulb. The 85.0-watt pair total is derived from that per-bulb result, not recorded independently as a complete kit.
The current version 2.1 test-detail record lists a 150°F / 66°C 30-minute temperature. The rear fan and finned body manage that heat while the recorded output drop from two to 30 minutes was only 1.5%. Those are short bench results, not a completed durability test, and installation airflow can change thermal behavior.
Noise, electronics, and DRL behavior
Fan noise measured 63 dB on the bench. That was audible while listening for it, but the archive does not preserve a controlled in-cabin sound result, so the review does not claim the fans will be inaudible after installation.
The current reflector and projector chart records label the Termitor CANBUS-friendly. That is a useful reference-test observation, not a guarantee against bulb-out warnings, flicker, or decoder needs in every vehicle. Radio-frequency interference and DRL/high-beam dimming behavior remain N/A.
Warranty and long-term testing
Coverage
The current chart lists a one-year warranty. That is manufacturer or seller coverage, not evidence of service life, and current terms should be confirmed before ordering.
Long-term lifespan remains N/A because a complete durability result has not been recorded. The 1.5% warmed-up stability result is encouraging, but it does not establish how long the bulbs or external drivers will last in a vehicle.
Should you buy it?
The Termitor suits a price-conscious buyer who wants strong measured reflector output without moving into a premium price tier. The 5.9 reflector score, strong high beam, useful projector result, high measured lumens, and stable warmed-up output make the recorded $69 estimated price persuasive.
The tradeoffs are a cooler 6500K color, only moderate reflector beam control, an external-driver installation, active-fan noise, and a one-year warranty. Long-term lifespan, DRL behavior, RFI, and exact-vehicle compatibility remain unknown rather than assumed.
Choose it when value and measured output are the main priorities and the housing can be checked and aimed after installation. Consider a lower-glare reflector recommendation, a stronger projector product, or a longer-warranty premium kit when those priorities matter more than the lowest purchase cost.
If those tradeoffs fit your vehicle, check the current price or compare the complete chart before deciding.
Full measurements and specifications
Open this reference for every recorded measurement, specification, unknown, and test-version detail. The main reflector and projector evidence remains visible above.
Show all recorded measurements and specificationsFive groups · version 2.1 bench record
Measured output
- Reflector performance score
- 5.9; 5.0 is a reference baseline, not a maximum
- Reflector low-beam hotspot
- 1,273 lux per bulb
- Reflector low-beam improvement
- 241% over the recorded halogen reference
- Reflector high-beam output
- 2,164 lux per bulb
- Reflector high-beam improvement
- 147% over the recorded halogen reference
- Projector performance score
- 4.8; 5.0 is a reference baseline, not a maximum
- Projector low-beam hotspot
- 575 lux per bulb
- Projector low-beam improvement
- 150% over the recorded halogen projector reference
- Projector high-beam output
- 575 lux per bulb
- Projector high-beam improvement
- 30% over the recorded halogen projector reference
- Measured lumens
- 4,860 lm per bulb; about 9,720 lm per pair derived
- Lumen improvement
- Not recorded
Beam quality
- Reflector beam-pattern rating
- 3 / 5; separate from the 5.9 performance score
- Projector beam-pattern rating
- 4 / 5; separate from the 4.8 performance score
- Reflector glare measurement
- 284 lux in the reference housing
- Projector glare measurement
- N/A; not recorded
Power, color, and thermal behavior
- Measured color temperature
- 6,500 K
- Measured electrical draw
- 42.5 watts per bulb
- Derived pair draw
- 85.0 watts per pair
- 30-minute running temperature
- 150°F / 66°C in the current version 2.1 test-detail record
- Cold-start to 30-minute output drop
- Not recorded
- 2-minute to 30-minute output drop
- 1.5%
- Fan noise
- 63 dB on the bench; no controlled in-cabin result recorded
- Cooling method
- Active rear fan and finned bulb body
Dimensions, features, and recorded compatibility
- Maximum bulb width
- 33 mm
- Base-to-rear dimension
- 36 mm
- Diode-handle dimension
- 40 mm
- Rotatable H7 collar
- Yes; one-degree increments recorded. The standardized label does not imply every listed size uses identical hardware
- LED diodes
- Six emitters per bulb, 12 per pair; exact manufacturer and model not recorded
- Emitter layout
- Flat substrate intended to approximate halogen filament placement
- Driver configuration
- External; recorded driver dimensions 58 × 30 × 14 mm
- Recorded product sizes
- H1, H4, H7, H8, H9, H11, H13, 9003, 9005, 9008, and 9012
- CANBUS behavior
- CANBUS-friendly in the current reflector and projector chart records; not a universal compatibility guarantee
- Exact-vehicle fitment
- Unconfirmed; verify bulb type, seating, orientation, rear clearance, driver placement, wiring, dust-cover space, airflow, DRL behavior, and electronics
- Housing context
- Current budget-friendly reflector recommendation; projector testing is useful for the price. Neither reference fixture guarantees performance in a selected vehicle
Warranty and test status
- Estimated price
- $69 in the current chart
- Recorded warranty
- 1 year
- Long-term lifespan
- N/A; complete durability testing is not recorded
- DRL / high-beam dimming
- N/A; unconfirmed
- Radio-frequency interference
- N/A; not recorded
- High-beam test photographs
- Available for both reflector and projector reference housings
- Publication date
- August 1, 2025
- Last updated
- May 31, 2026
- Test version
- Version 2.1 bench record
Headline facts use the current BulbFacts version 2.1 chart record. See how we test for current procedures and use the LED chart for live comparisons. The recorded procedure uses a 25-foot test distance; reflector glare was measured at 9 feet, 2.64 inches above and 2.85 inches left of the center focal point. General reference-housing results do not establish exact-vehicle fitment.
