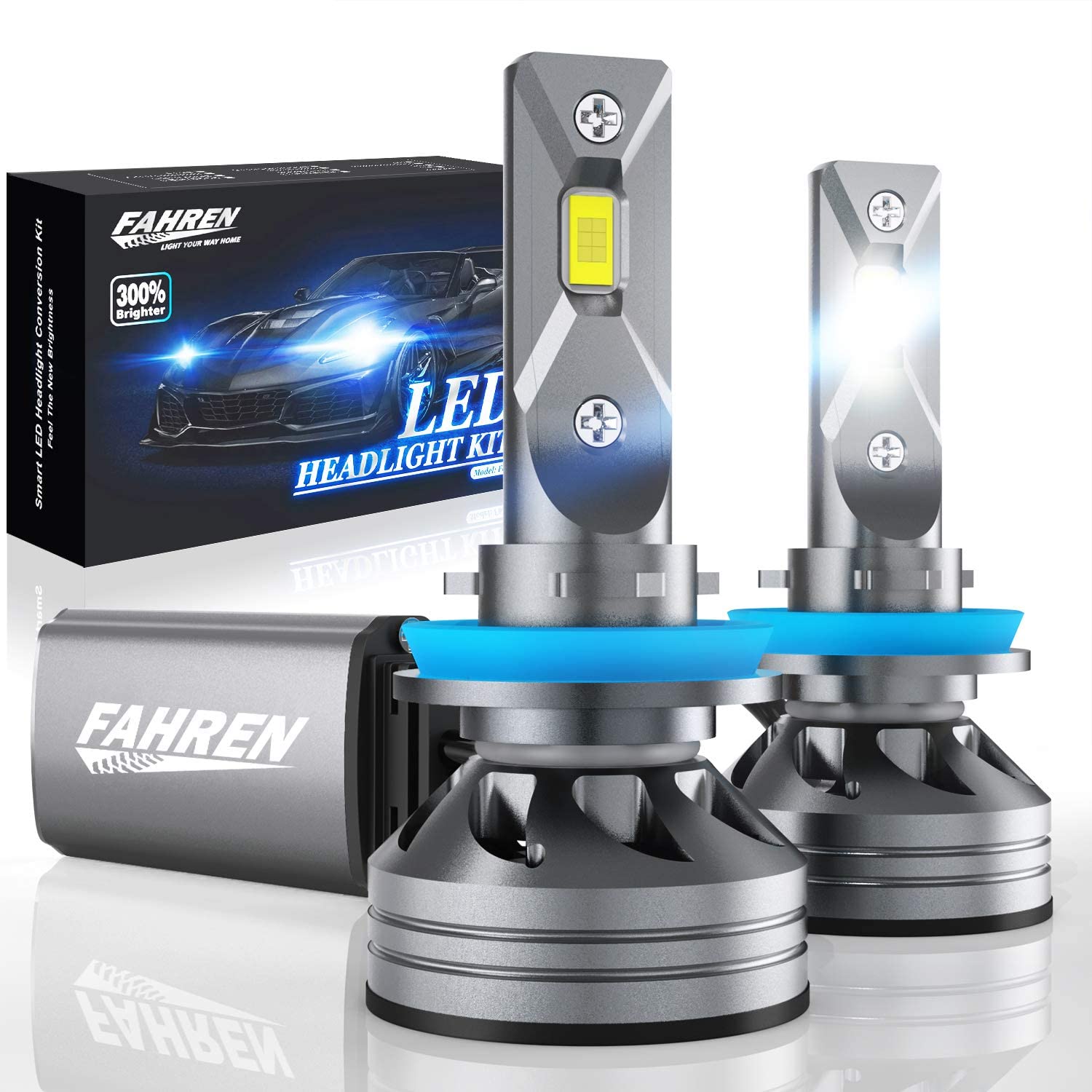

Fahren Forscher F6A LED Headlight Kit Review
A low-cost LED with a controlled reflector beam, low measured glare, restrained power draw, and a completed 7,900-hour lifespan result—balanced by much weaker projector output, cool-white color, external drivers, and a one-year warranty.
- Reflector performance
- 3.9BulbFacts score · 5.0 baseline
- Projector performance
- 2.8BulbFacts score · 5.0 baseline
- Measured output
- 2,961 lmper bulb · about 5,922 lm per pair
- Color temperature
- 6,100 Kmeasured
Our verdict
The Fahren Forscher F6A is a sensible value-oriented reflector kit rather than a maximum-output LED. Its 894-lux low beam, 1,651-lux high beam, 135-lux glare measurement, and separate 4.5/5 reflector-pattern rating show a useful balance of output and control around the recorded $57–69 price. The completed 7,900-hour lifespan test is a standout ownership result, while the weaker projector performance, external-driver installation, cool 6100K color, and one-year warranty remain important tradeoffs.
What we liked
- A controlled reflector result with 135 lux of glare and a separate 4.5/5 beam-pattern rating.
- Low 24.6-watt-per-bulb draw, 56 dB bench fan noise, and only a 3.8% output drop from two to 30 minutes.
- A recorded 7,900-hour lifespan before burnout, rated Superior in the archived test.
What to consider
- Projector performance was much weaker: 417 lux on low beam and 425 lux on high beam.
- The 6100K color is cool, and the external drivers plus active fans require installation space.
- The warranty is one year; DRL behavior, RFI, and exact-vehicle compatibility remain unconfirmed.
Build quality

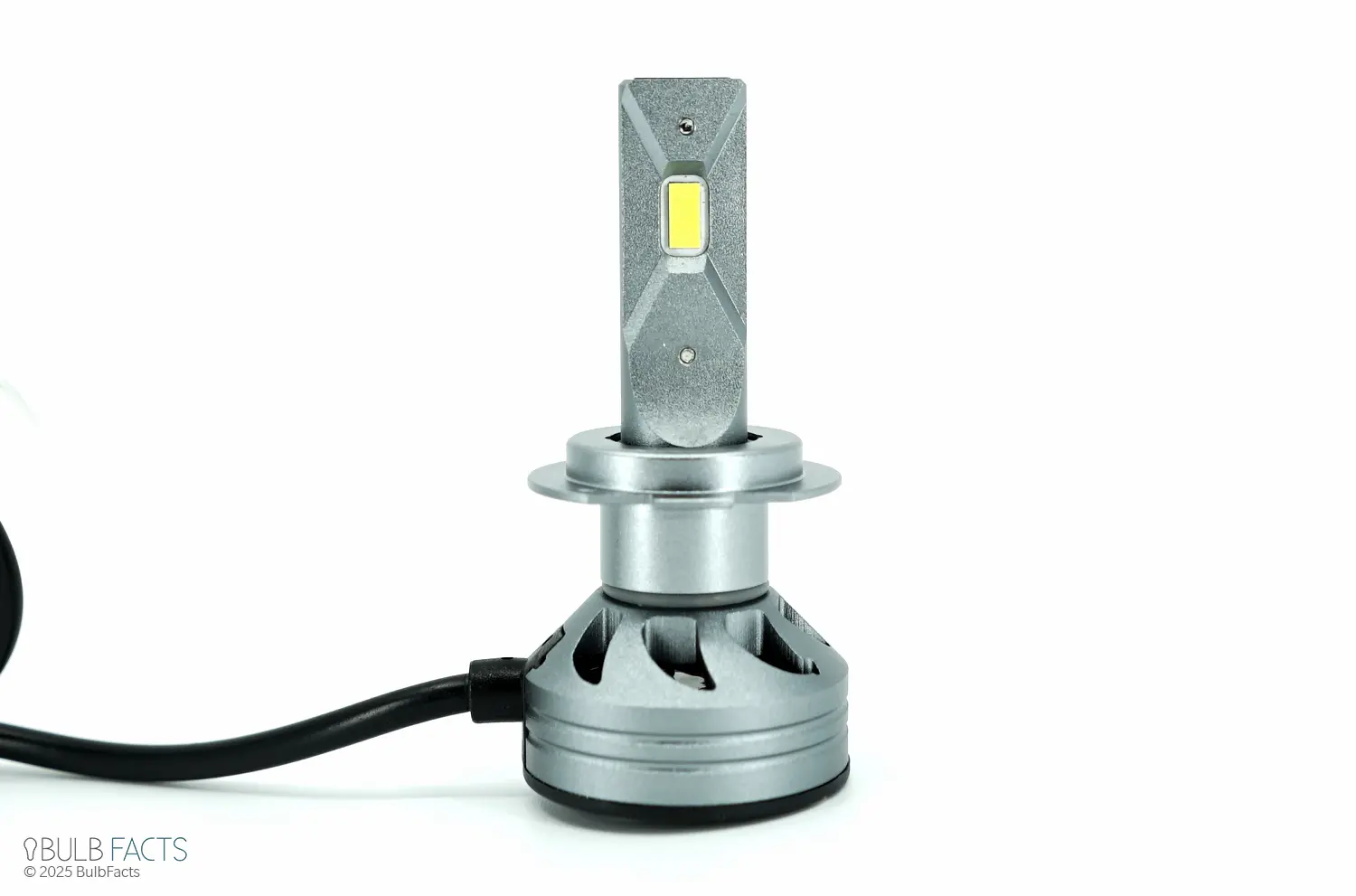

The F6A is built as a modest-power, fan-cooled kit with a narrow flat emitter board, a rotatable H7 collar, a finned bulb body, and a separate metal driver. It is not an all-in-one bulb, so the driver, wiring, and fan all need room behind the housing.
We purchased the kit directly and tested it in both reflector and projector reference housings. The H7 collar is recorded as adjustable in one-degree increments, giving an installer useful orientation control in a housing that responds to rotation without guaranteeing the same result in every headlight.
The hardware feels credible for the recorded price, but the measured beam, electrical, thermal, and 7,900-hour lifespan results below are the evidence that matters. Packaging and finish are supporting context rather than proof of performance.
Reflector headlight performance
The F6A is at its best in the reflector fixture, where it delivered a useful halogen upgrade with low measured glare and a well-controlled pattern for its price.
Reference-housing context: These version 2.1 bench results describe the BulbFacts reflector fixture. Seating, emitter orientation, lens condition, aim, and vehicle electronics can change the result in an exact vehicle.
Gray dots show every scored kit. Named markers are current BulbFacts recommendations. The 5.0 reference is a baseline, not a maximum.
Reflector performance score 3.9 compared with 54 scored LED kits and the 5.0 reference baseline.
- Low-beam hotspot
- 894 luxper bulb
Reflector low-beam output of 894 lux compared with 54 scored products.
- High-beam output
- 1,651 luxper bulb
Reflector high-beam output of 1,651 lux compared with 54 scored products.
- Glare measurement
- 135 luxreference housing
Reflector glare measurement of 135 lux compared with 22 products with recorded glare. Lower is better.
- Beam pattern
- 4.5 / 5separate pattern rating
Reflector beam-pattern rating of 4.5 out of 5 compared with 22 products with recorded ratings. Higher is better.
Low beam measured 894 lux per bulb, a 140% improvement over the recorded halogen reflector reference. High beam measured 1,651 lux per bulb, an 88% gain. The result does not match the most aggressive premium kits, but it is a meaningful upgrade at this price.

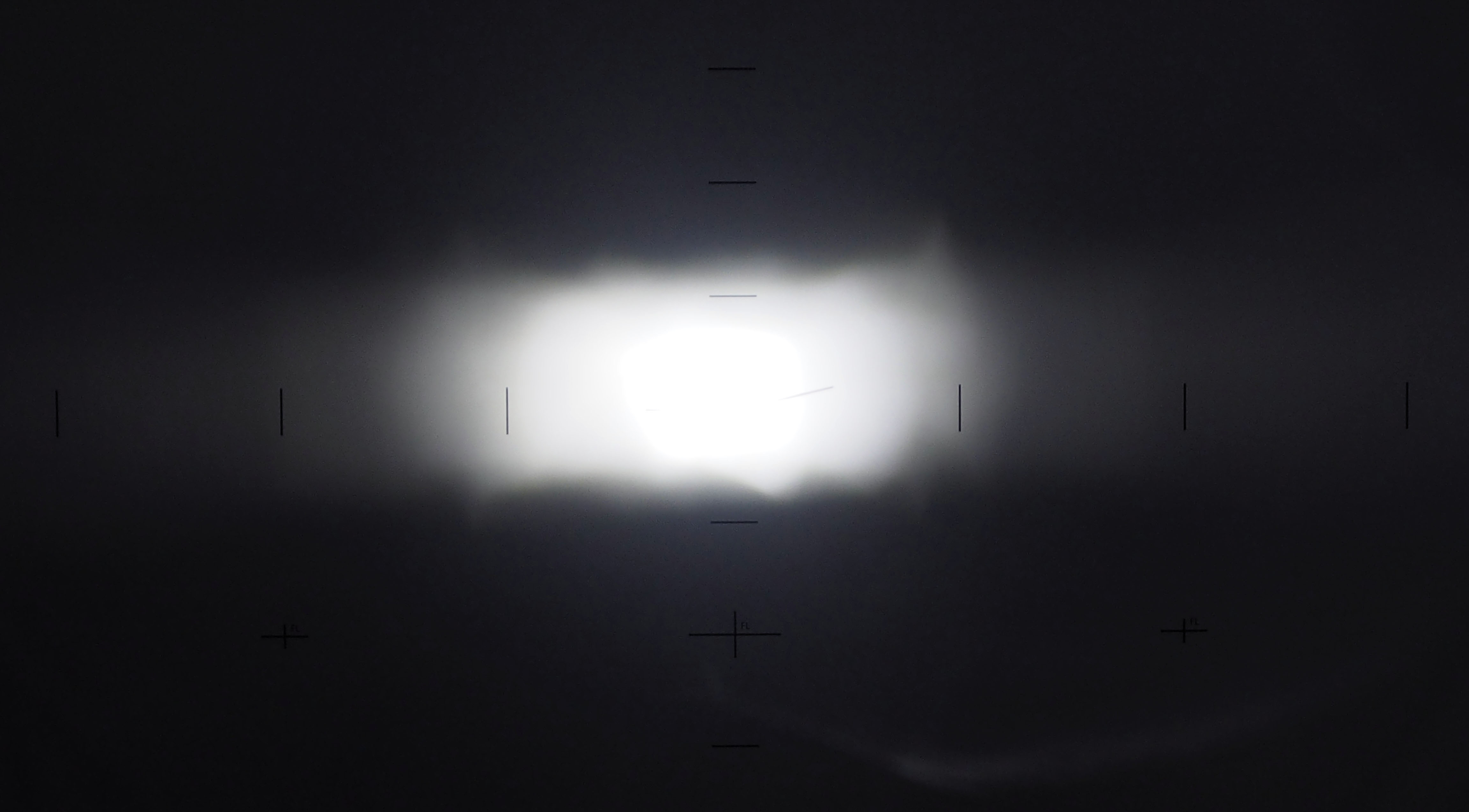

Reflector glare measured only 135 lux, and the beam received a separate 4.5 / 5 pattern rating. The photographs show a defined hotspot, useful spread, and relatively little scattered light compared with many budget LEDs.
The 3.9 performance score uses 5.0 as a reference baseline, not a maximum, and is not a 3.9-out-of-five star rating. The 4.5 / 5 value rates beam shape separately. These reference-fixture results do not promise the same glare or distribution in every vehicle housing.
Projector headlight performance
The F6A remained usable in the projector fixture, but its intensity fell well behind the reflector result and its high beam finished slightly below the recorded halogen reference.
Reference-housing context: These results describe the BulbFacts projector fixture, not a guarantee for every vehicle projector. Optical design, bulb seating, focus, aim, and lens condition remain important.
Gray dots show every scored kit. Named markers are current BulbFacts recommendations. The 5.0 reference is a baseline, not a maximum.
Projector performance score 2.8 compared with 54 scored LED kits and the 5.0 reference baseline.
- Low-beam hotspot
- 417 luxper bulb
Projector low-beam output of 417 lux compared with 54 scored products.
- High-beam output
- 425 luxper bulb
Projector high-beam output of 425 lux compared with 54 scored products.
- Glare measurement
- Not recordedprojector test
- Beam pattern
- 3.5 / 5separate pattern rating
Projector beam-pattern rating of 3.5 out of 5 compared with 47 products with recorded ratings. Higher is better.
Projector low beam measured 417 lux per bulb, an 81% improvement over the recorded halogen projector reference. High beam measured 425 lux per bulb, slightly below its recorded halogen reference.
The beam was smooth and evenly spread, but it lacked the intensity and throw of stronger projector products. The separate 3.5 / 5 pattern rating describes that beam shape; it does not replace the 2.8 performance score or stand in for a projector glare measurement, which was not recorded.
The F6A therefore makes more sense as a reflector value product than a projector recommendation. Exact performance still depends on the vehicle projector, seating, focus, and aim.
Output, color, and stability
The measured lumen result supports the reflector finding, while the cool 6100K color and 3.8% warmed-up drop describe how the F6A looks and behaves after reaching operating temperature.

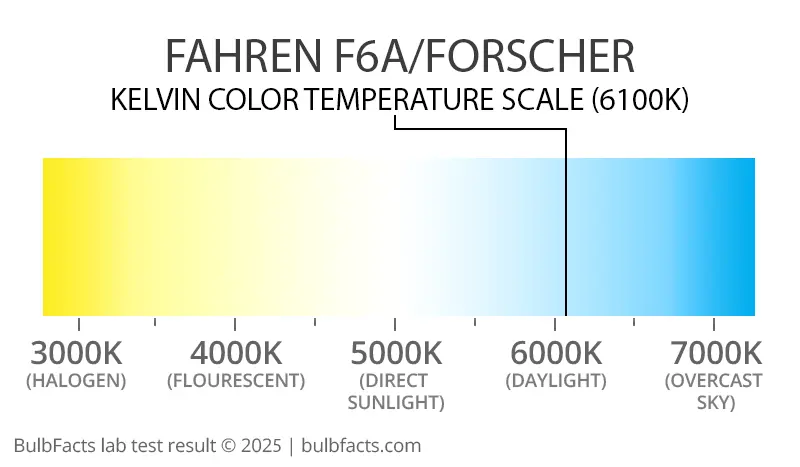

Fahren Forscher F6A Kelvin

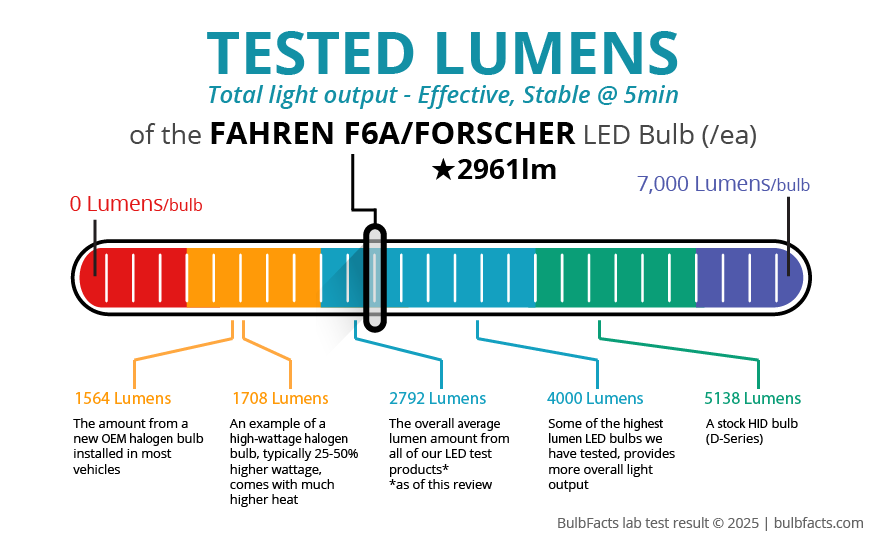

Fahren Forscher F6A lumens
Color temperature measured 6,100K. That produces a crisp cool-white light with a slight cool tint rather than a neutral 5000K appearance. The color is not extreme blue, but a warmer or more neutral product may be preferable in wet-weather reflections.
The current chart records 2,961 measured lumens per bulb, or about 5,922 lumens per pair when doubled. Lux and lumens measure different things, and the housing tests show that this moderate open-air output translates more convincingly in the reflector fixture than in the projector.
From two to 30 minutes, output dropped 3.8%, earning an A rating in the archived power-drop category. That is good warmed-up stability. It is separate from the completed 7,900-hour lifespan result discussed below, and a cold-start-to-30-minute percentage was not recorded.
Installation and cooling

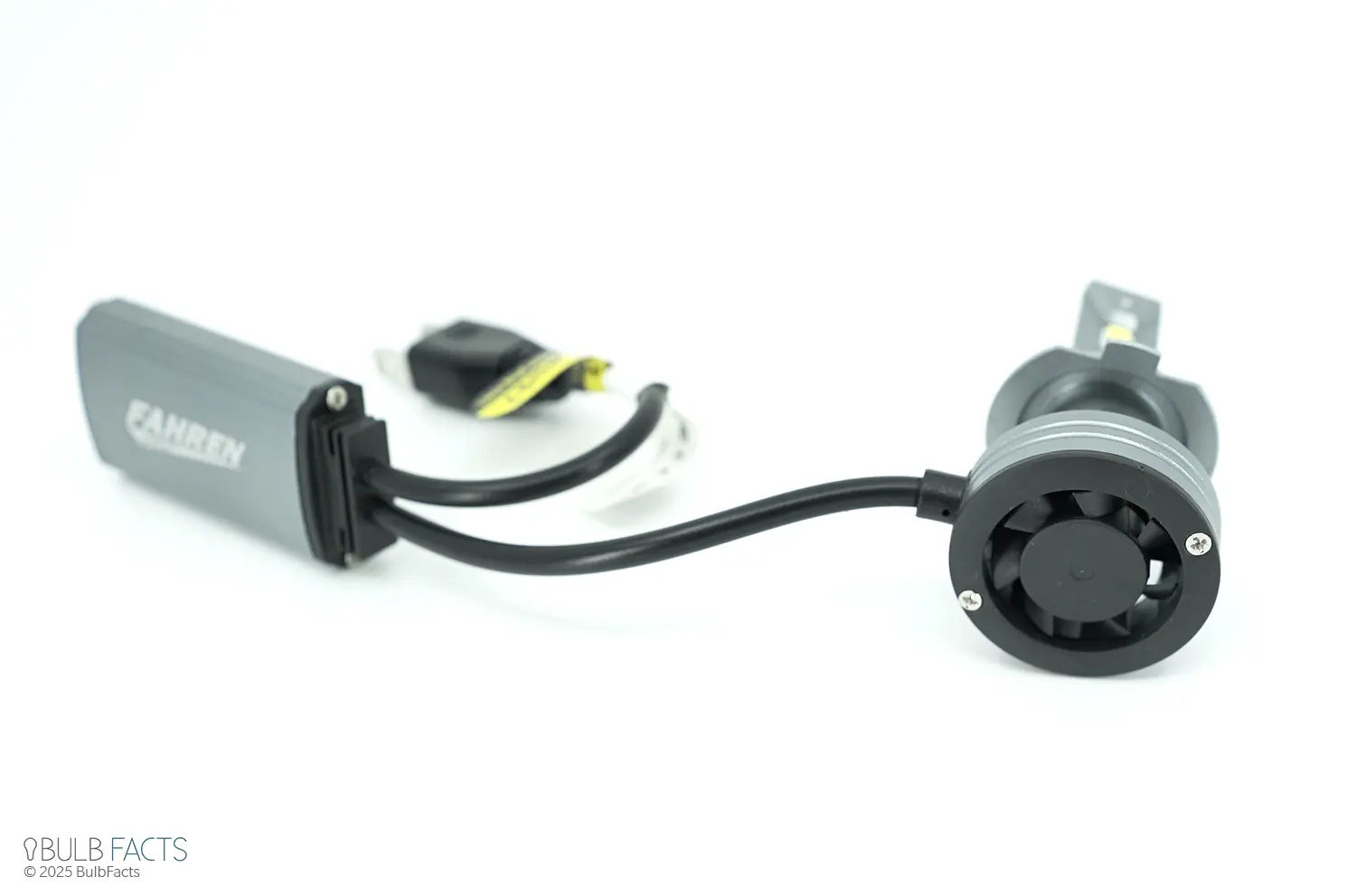

The F6A combines low measured draw with an external driver and active rear fan. Physical clearance, driver placement, noise, and vehicle-electronics behavior still need checking before ordering.
Per-bulb draw
30-min temp
Fan noise
Physical size and fit
The bulb measures 35 mm at its widest point, 34 mm from the base to the rear, and 43 mm across the diode-handle dimension. The external driver is recorded at 61 × 30 × 13 mm. The complete installation needs room for the bulb, fan, driver, wiring, connector, and dust cover without pinching or blocking airflow.
The H7 collar is recorded as adjustable in one-degree increments. Recorded sizes are H1, H7, H8, H9, H11, 9003, 9004, 9005, 9006, 9007, and 9012. A matching size alone does not confirm exact-vehicle fitment.
Power draw and cooling
Electrical draw measured 24.6 watts per bulb. The 49.2-watt pair total is derived from that per-bulb result, not recorded independently as a complete kit.
The current version 2.1 chart record lists a 128°F / 53°C 30-minute temperature. The rear fan and finned body manage that heat while the output drop from two to 30 minutes was 3.8%. Those bench results describe the test setup; installation airflow can change thermal behavior.
Noise, electronics, and DRL behavior
Fan noise measured 56 dB on the bench, a relatively quiet recorded fan result. The archive does not preserve a controlled in-cabin sound measurement, so the review does not promise that every installation will be inaudible.
The current reflector and projector chart records label the F6A CANBUS-friendly. That is a useful reference-test observation, not a guarantee against bulb-out warnings, flicker, or decoder needs in every vehicle. Radio-frequency interference and DRL/high-beam dimming behavior remain N/A.
Warranty and long-term testing
Coverage
The current chart lists a one-year warranty. That is manufacturer or seller coverage, not the reason for the lifespan conclusion, and current terms should still be confirmed before ordering.
The F6A completed 7,900 hours before burnout in BulbFacts long-term testing, earning a recorded Superior lifespan rating. That measured result is unusually strong for a budget kit and remains distinct from the shorter warranty.
Should you buy it?
The F6A suits a price-conscious reflector-headlight buyer who values controlled beam shape, low measured glare, modest power draw, and proven long-term bench life more than maximum output. Its $57–69 estimated price range is supported by useful reflector results and the completed 7,900-hour lifespan test.
The tradeoffs are much weaker projector performance, a cool 6100K color, external drivers, active fans, and a one-year warranty. DRL behavior, RFI, and exact-vehicle compatibility remain unknown rather than assumed.
Choose it when a balanced reflector result and low purchase cost matter most, with careful seating and aim after installation. Projector users seeking stronger intensity should compare the current recommendations before buying.
If those tradeoffs fit your vehicle, check the current price or compare the complete chart before deciding.
Full measurements and specifications
Open this reference for every recorded measurement, specification, unknown, and test-version detail. The main reflector and projector evidence remains visible above.
Show all recorded measurements and specificationsFive groups · version 2.1 bench record
Measured output
- Reflector performance score
- 3.9; 5.0 is a reference baseline, not a maximum
- Reflector low-beam hotspot
- 894 lux per bulb
- Reflector low-beam improvement
- 140% over the recorded halogen reference
- Reflector high-beam output
- 1,651 lux per bulb
- Reflector high-beam improvement
- 88% over the recorded halogen reference
- Projector performance score
- 2.8; 5.0 is a reference baseline, not a maximum
- Projector low-beam hotspot
- 417 lux per bulb
- Projector low-beam improvement
- 81% over the recorded halogen projector reference
- Projector high-beam output
- 425 lux per bulb
- Projector high-beam improvement
- Slightly below the recorded halogen projector reference; percentage not recorded
- Measured lumens
- 2,961 lm per bulb; about 5,922 lm per pair derived
- Lumen improvement
- Not recorded
Beam quality
- Reflector beam-pattern rating
- 4.5 / 5; separate from the 3.9 performance score
- Projector beam-pattern rating
- 3.5 / 5; separate from the 2.8 performance score
- Reflector glare measurement
- 135 lux in the reference housing
- Projector glare measurement
- N/A; not recorded
Power, color, and thermal behavior
- Measured color temperature
- 6,100 K
- Measured electrical draw
- 24.6 watts per bulb
- Derived pair draw
- 49.2 watts per pair
- 30-minute running temperature
- 128°F / 53°C in the current version 2.1 chart record
- Cold-start to 30-minute output drop
- Not recorded
- 2-minute to 30-minute output drop
- 3.8%; archived A rating
- Fan noise
- 56 dB on the bench; no controlled in-cabin result recorded
- Cooling method
- Active rear fan and finned bulb body
Dimensions, features, and recorded compatibility
- Maximum bulb width
- 35 mm
- Base-to-rear dimension
- 34 mm
- Diode-handle dimension
- 43 mm
- Rotatable H7 collar
- Yes; one-degree increments recorded. The standardized label does not imply every listed size uses identical hardware
- LED diodes
- Archived record says 12 total; the per-bulb or per-pair basis and exact diode model are not specified
- Emitter layout
- Flat, narrow substrate intended to approximate halogen filament placement
- Driver configuration

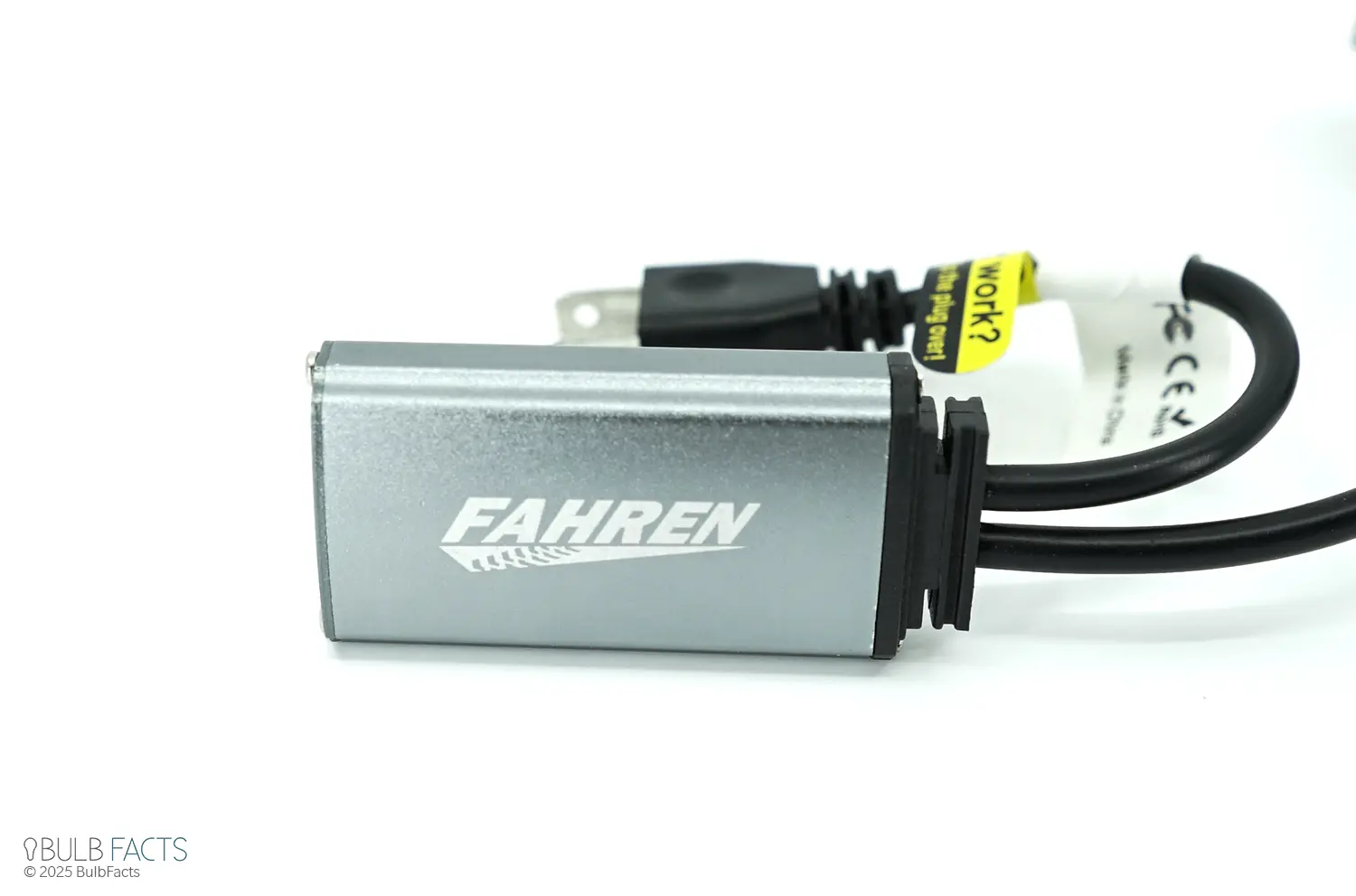

- External; recorded driver dimensions 61 × 30 × 13 mm
- Recorded product sizes
- H1, H7, H8, H9, H11, 9003, 9004, 9005, 9006, 9007, and 9012
- CANBUS behavior
- CANBUS-friendly in the current reflector and projector chart records; not a universal compatibility guarantee
- Exact-vehicle fitment
- Unconfirmed; verify bulb type, seating, orientation, rear clearance, driver placement, wiring, dust-cover space, airflow, DRL behavior, and electronics
- Housing context
- Stronger reflector result with low measured glare; weaker projector output. Neither reference fixture guarantees performance in a selected vehicle
Warranty and test status
- Estimated price
- $57–69 in the current chart
- Recorded warranty
- 1 year
- Long-term lifespan
- 7,900 hours before burnout; Superior rating in the recorded test
- DRL / high-beam dimming
- N/A; unconfirmed
- Radio-frequency interference
- N/A; not recorded

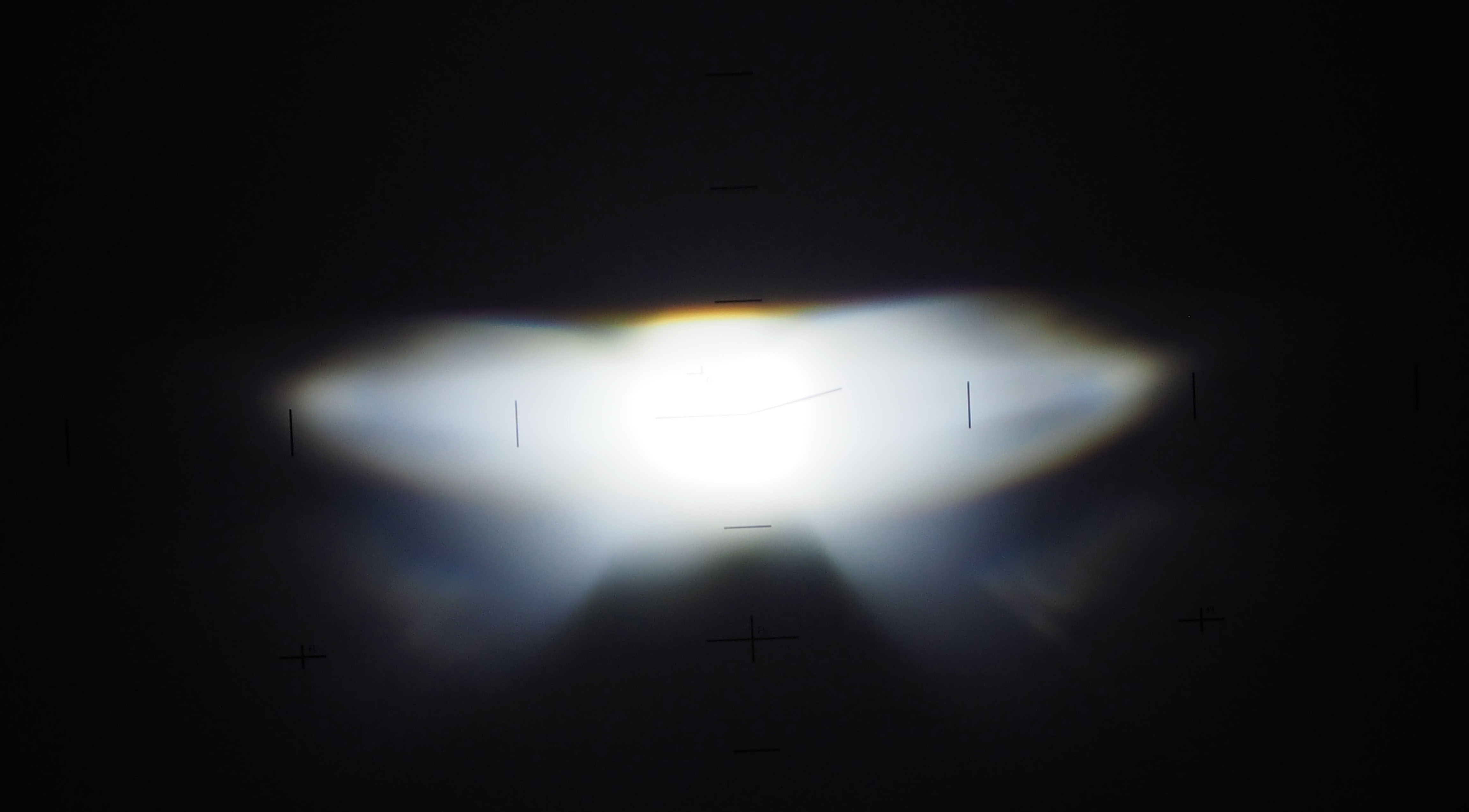

- High-beam test photographs
- Available for both reflector and projector reference housings
- Publication date
- August 1, 2025
- Last updated
- May 31, 2026
- Test version
- Version 2.1 bench record
Headline facts use the current BulbFacts version 2.1 chart record. See how we test for current procedures and use the LED chart for live comparisons. The recorded procedure uses a 25-foot test distance; reflector glare was measured at 9 feet, 2.64 inches above and 2.85 inches left of the center focal point. General reference-housing results do not establish exact-vehicle fitment.
