DDM Tuning SaberLED ProX 55W Accu/V2 Review
A premium high-output LED with strong reflector and projector results, excellent warmed-up stability, and clean 5650K color—but its power draw, external driver, limited low-voltage DRL behavior, and two-year warranty matter.
- Reflector performance
- 5.8BulbFacts score · 5.0 baseline
- Projector performance
- 5.8BulbFacts score · 5.0 baseline
- Measured output
- 4,883 lmper bulb · 9,766 lm per kit
- Color temperature
- 5,650 Kmeasured
Our verdict
The SaberLED ProX 55W Gen2 suits a driver who wants a premium, high-output LED with convincing results in both BulbFacts reference housings. It combines strong reflector reach, unusually good projector performance, stable warmed-up output, and controlled bench temperature. Its higher electrical draw, external driver, active fan, limited low-voltage DRL behavior, and housing-dependent glare still deserve attention before ordering.
What we liked
- Strong results in both reference housings, including 1,288-lux reflector low beam and 683-lux projector low beam.
- A 4.5/5 projector beam-pattern rating and only a recorded 2.1% output drop from two to 30 minutes.
- Clean 5650K color, controlled 123°F bench temperature, and CANBUS-friendly behavior in the recorded test context.
What to consider
- The $140–180 recorded price and 47.8-watt-per-bulb draw place it above many lower-power alternatives.
- Reflector glare measured 238 lux, and the current 3.5/5 pattern rating is separate from its 5.8 performance score.
- The fan, non-removable external driver, 7.5V minimum fade-on observation, and exact-vehicle fitment all require vehicle-specific checks.
Build quality
The ProX V2 improved on the prior generation with more usable output and lower wattage. It was not just a product that looked impressive on paper: the bench results showed serious reflector performance, unusually strong projector performance, and very little brightness loss after warm-up.
The flat emitter boards, substantial fan-cooled body, fine collar adjustment, braided wiring, and separate driver give it the deliberate construction expected from a premium, high-output kit. DDM described the emitters as customized auto-grade LED chips rather than publishing a specific diode model.
Those hardware details help explain the package and installation demands, but the measured beam results below—not the finish, packaging, or brand—determine how well the kit performed.
Reflector headlight performance
The ProX V2 paired very strong output with a usable reflector beam, although its 238-lux glare result and 3.5/5 pattern rating still make housing choice and aim important.
About these tests: The reflector and projector measurements below come from BulbFacts reference housings so products can be compared consistently. They are not exact-vehicle tests; bulb seating, housing optics, lens condition, and aim can change output, glare, and beam shape. The selected-vehicle panel above remains the source for any known applicability evidence.
Gray dots show every scored kit. Named markers are current BulbFacts recommendations. The 5.0 reference is a baseline, not a maximum.
Reflector performance score 5.8 compared with 54 scored LED kits and the 5.0 reference baseline.
- Low-beam hotspot
- 1,288 luxper bulb
Reflector low-beam output of 1,288 lux compared with 54 scored products.
- High-beam output
- 1,973 luxper bulb
Reflector high-beam output of 1,973 lux compared with 54 scored products.
- Glare measurement
- 238 luxreference housing
Reflector glare measurement of 238 lux compared with 22 products with recorded glare data. Lower is better.
- Beam pattern
- 3.5 / 5separate pattern rating
Reflector beam-pattern rating of 3.5 out of 5 compared with 22 products with recorded ratings. Higher is better.
Reflector low beam measured 1,288 lux per bulb against the recorded 373-lux halogen baseline. The original review described that as nearly 3.5 times the distance, or a 245% increase in measured lux.
Reflector high beam measured 1,973 lux per bulb, recorded as a 125% increase over the halogen baseline. The measured result remains available even though a matching high-beam photograph was not retained with this review.
Glare measured 238 lux, and the current test record assigns a separate 3.5/5 beam-pattern rating. The original article displayed 4/5, so both records remain noted in the technical reference rather than being silently reconciled. Reference-housing results do not guarantee the same output, cutoff, or glare in a selected vehicle.
Projector headlight performance
The ProX V2 was one of the stronger projector performers from this test generation, with useful low- and high-beam output and a 4.5/5 pattern rating.
Gray dots show every scored kit. Named markers are current BulbFacts recommendations. The 5.0 reference is a baseline, not a maximum.
Projector performance score 5.8 compared with 54 scored LED kits and the 5.0 reference baseline.
- Low-beam hotspot
- 683 luxper bulb
Projector low-beam output of 683 lux compared with 54 scored products.
- High-beam output
- 722 luxper bulb
Projector high-beam output of 722 lux compared with 54 scored products.
- Beam pattern
- 4.5 / 5separate pattern rating
Projector beam-pattern rating of 4.5 out of 5 compared with 47 products with recorded ratings. Higher is better.
Projector low beam measured 683 lux per bulb. The original article described that as a 197% increase over its recorded halogen context, making the ProX V2 a convincing result in a housing type where many LED conversions struggle.
Projector high beam measured 722 lux per bulb. A separate high-beam improvement percentage and matching high-beam photograph were not retained in this review, so neither is inferred here.
The projector beam-pattern rating was 4.5/5, with a small lower-beam dark area noted in the original review. Projector glare was not separately recorded. As with the reflector result, housing optics and installation can change the outcome in a specific vehicle.
Output, color, and stability
We measured total light output, color temperature, and the change in output as the bulbs warmed up.
DDM Tuning SaberLED ProX 55W Kelvin
DDM Tuning SaberLED ProX 55W lumens
The ProX V2 measured 5650K, placing it between the 5000K pure-white reference and the cooler 6000K range. It reads as a modern cool white without the heavy blue appearance common to some higher-Kelvin kits.
Total output measured 4,883 lumens per bulb at two minutes, or 9,766 lumens per kit. After 30 minutes, the recorded output was 4,764 lumens per bulb.
The source review records a 2.1% drop from two to 30 minutes and an A+ stability result. The rounded displayed lumen values produce a slightly different arithmetic percentage, so the recorded 2.1% is preserved as source data rather than silently recalculated. A cold-start-to-30-minute figure was not recorded.
Installation and cooling
The adjustable collar supports precise emitter placement, but the 47.8-watt draw, rear fan, non-removable external driver, and recorded DRL behavior require physical and electrical checks before ordering.
Per-bulb draw
The 47.8-watt-per-bulb result is compared with 54 LED kits recorded from 11.9 to 95.6 watts per bulb and the 53-watt halogen reference.
30-min temp
The 123-degree result is compared with 54 LED kits recorded from 80 to 166 degrees Fahrenheit. The visual scale extends to the 525-degree halogen reference.
Fan noise
The 61-decibel current-chart result is compared with 54 LED kits, including fanless products and fan measurements up to 71 decibels. The original article recorded 68 decibels.
Physical size and fit
The bulb measures 40 mm at its widest point, 39 mm from the base to the rear, and 42 mm across the diode-handle dimension. The external driver measures 61 × 34 × 18 mm and is not detachable. The H7 collar is listed as rotatable in 1-degree increments.
The chart lists many available bulb sizes, but a matching nominal size does not confirm fitment. Check bulb type, seating, rear clearance, driver placement, dust-cover space, and vehicle electronics before ordering.
Power draw and cooling
We measured 47.8 watts per bulb on the test bench. The 95.6-watt pair total is derived from that per-bulb measurement. The draw is slightly below the recorded 53-watt-per-bulb halogen reference but higher than many LED kits.
After 30 minutes, running temperature measured 123°F / 50.5°C. The active rear fan manages that heat, while the separate external driver adds another component that must fit securely inside or near the housing.
Noise and electronics
The current chart records 61 dB fan noise on the bench, while the original article recorded 68 dB. Both source values remain in the technical reference; neither is presented as in-cabin noise.
The original test reported no bulb-out errors in a newer GMC test vehicle, and the current chart labels the kit CANBUS-friendly. That is useful recorded behavior, not a guarantee for every vehicle. On the linear power supply it did not start at 6V and required about 7.5V to fade on, so low-voltage DRL behavior is vehicle-dependent. Radio-frequency interference was not recorded.
Warranty and long-term testing
Coverage
The product is listed with a two-year warranty. That is manufacturer or seller coverage, not evidence of measured lifespan; confirm the current terms, exclusions, and claim process before ordering.
The chart carries a C lifespan rating, but a supporting runtime-hour result is not recorded in this review. The purchased samples had no issues during the original test, but short bench operation and warranty coverage do not replace completed durability data.
Should you buy it?
The SaberLED ProX 55W Gen2 remains a strong result from the version 2.0 bench for drivers who prioritize high output in both reflector and projector reference housings. Its 5.8 reflector and projector performance scores, 4.5/5 projector pattern, stable warmed-up output, and controlled temperature explain why it stood out in its generation.
The tradeoffs are the $140–180 recorded price, 47.8-watt-per-bulb draw, active fan, non-removable external driver, modest two-year warranty, and limited low-voltage DRL behavior. Reflector glare and exact-vehicle fitment also remain housing- and vehicle-dependent.
It makes the most sense for a buyer comfortable checking electrical behavior, rear clearance, seating, and aim. Drivers who want lower draw, simpler hardware, broader recorded compatibility evidence, or a current recommendation should compare the complete chart before deciding.
If those tradeoffs work for your vehicle, check the current price or compare the test results before deciding.
Full measurements and specifications
Open this reference for every recorded measurement, specification, unknown, and test-method detail. The main reflector and projector findings remain visible above.
Show all recorded measurements and specificationsFive groups · version 2.0 bench record
Measured output
- Reflector performance score
- 5.8; 5.0 reference baseline
- Reflector low-beam hotspot
- 1,288 lux per bulb
- Reflector low-beam improvement
- 245% over the recorded 373-lux halogen baseline
- Reflector high-beam output
- 1,973 lux per bulb
- Reflector high-beam improvement
- 125% over the recorded halogen baseline
- Projector performance score
- 5.8; 5.0 reference baseline
- Projector low-beam hotspot
- 683 lux per bulb
- Projector low-beam improvement
- 197% in the original article context
- Projector high-beam output
- 722 lux per bulb
- Projector high-beam improvement
- Not separately recorded in this review
- Measured lumens
- 4,883 lm per bulb at 2 minutes; 4,764 lm per bulb at 30 minutes; 9,766 lm per kit at 2 minutes
- Lumen improvement
- Not separately recorded in this review
Beam quality
- Reflector beam-pattern rating
- 3.5 / 5 in the current test record; 4 / 5 in the original article
- Projector beam-pattern rating
- 4.5 / 5
- Reflector glare measurement
- 238 lux in the reference housing
- Projector glare measurement
- Not recorded in this review
Power, color, and thermal behavior
- Measured color temperature
- 5,650 K
- Measured electrical draw
- 47.8 watts per bulb
- Derived pair draw
- 95.6 watts per pair
- 30-minute running temperature
- 123°F / 50.5°C
- Cold-start to 30-minute output drop
- Not recorded in this review
- 2-minute to 30-minute output drop
- 2.1% recorded; rounded displayed lumen values differ slightly
- Fan noise
- 61 dB in the current chart; 68 dB in the original article
- Cooling method
- Fan; rear active-cooling design
Dimensions, features, and recorded compatibility
- Maximum bulb width
- 40 mm
- Base-to-rear dimension
- 39 mm
- Diode-handle dimension
- 42 mm
- Rotatable H7 collar
- Yes; 1° increments

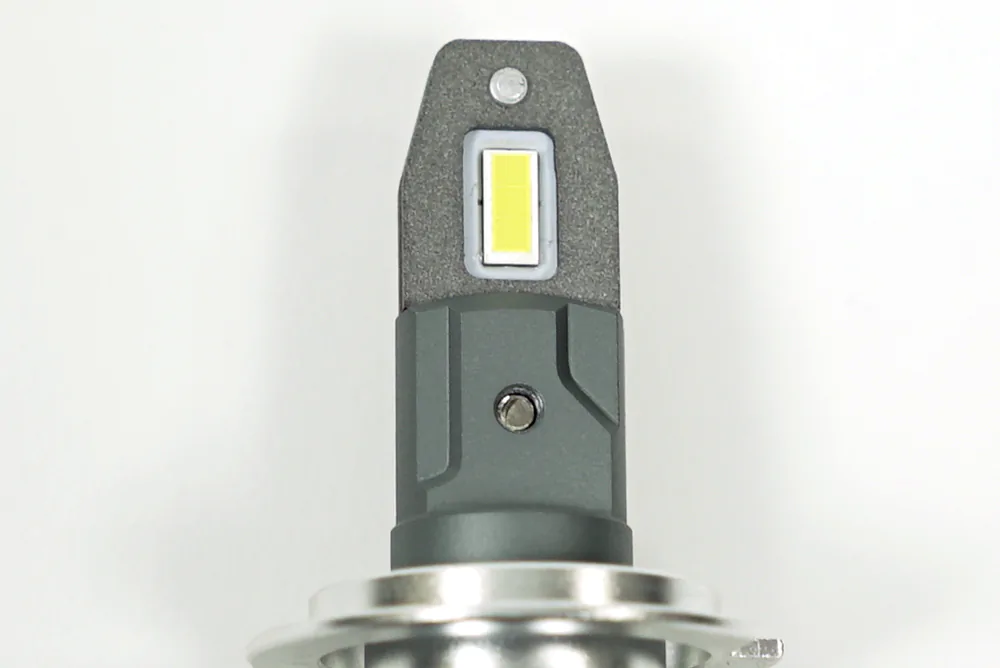

- LED diodes
- Customized auto-grade LED chips; specific diode model not disclosed
- Emitter layout
- 6 each; 12 total per bulb; flat direction

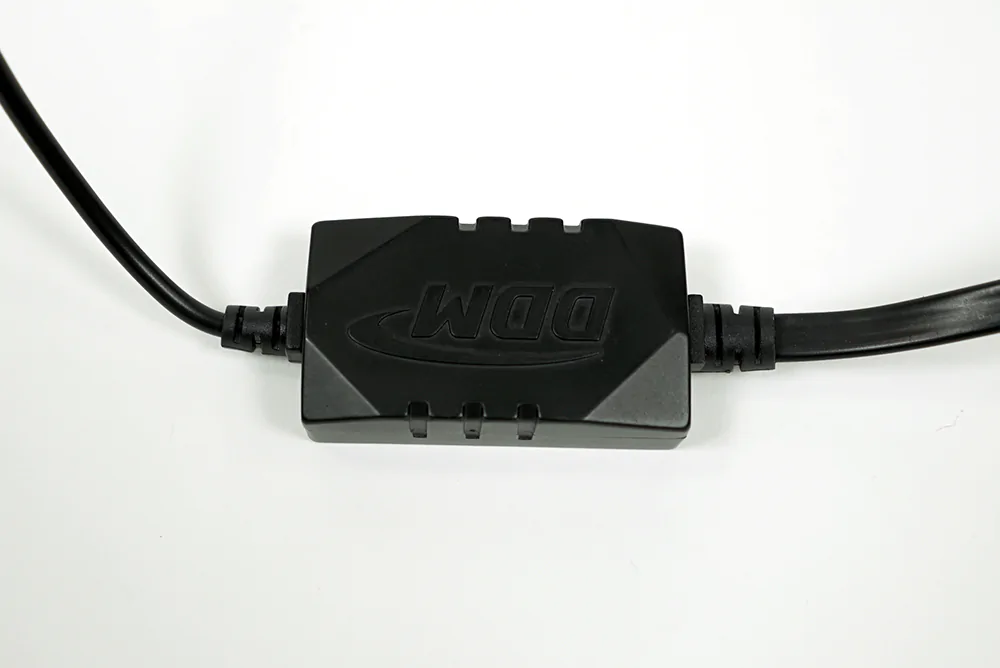

- Driver configuration
- External, non-removable; 61 × 34 × 18 mm (W × L × D)
- Recorded product sizes
- H1, H3, H4, H7, H8, H9, H10, H11, H13, H16, 9004, 9005, 9006, 9007, 9008, 9012, 5202, PSX26W, D-Series
- CANBUS behavior
- CANBUS-friendly in the current chart; no bulb-out error in one recorded GMC test; not a universal compatibility guarantee
- Exact-vehicle fitment
- Unconfirmed; verify bulb type, seating, rear clearance, driver placement, dust-cover space, and electrical behavior
- Housing context
- Strong reflector and projector results in reference housings; not an exact-vehicle test
Warranty and test status
- Estimated price
- $140–180 per set in the current chart record
- Recorded warranty
- 2-year listed coverage
- Long-term lifespan
- C rating in the current chart; supporting runtime hours not recorded in this review
- DRL / high-beam dimming
- No at 6V in the original linear-power-supply test; about 7.5V minimum to fade on; vehicle behavior may vary
- Radio-frequency interference
- N/A; unconfirmed
- High-beam test photographs
- Not available in this review for either reference housing
- Publication date
- March 20, 2021
- Last updated
- May 31, 2026
- Test version
- Version 2.0 bench record
Facts listed above are based on BulbFacts testing processes at the time of this review. See how we test for current procedures and use the LED chart for the live product comparison.
