DDM Tuning SaberLED 50W Pro Series Review
A discontinued high-output LED with excellent historical reflector results, unusually high measured lumens, and substantial hardware—but with version 1.0 data that should not be treated as a current-chart ranking.
- Reflector performance
- 5.1original score · 5.0 reference baseline
- Projector performance
- 4.3original score · 5.0 reference baseline
- Measured output
- 12,200 lmper kit · about 6,100 lm per bulb
- Color temperature
- 5,250 Kmeasured · 6000K white model
Our verdict
The SaberLED 50W Pro Series was a convincing high-output option in the original BulbFacts test, particularly in reflector headlights. Its 12,200-lumen kit output, controlled reflector pattern, clean white color, and near-halogen electrical draw remain meaningful findings, but the product is discontinued and its version 1.0 results should be compared only within that historical test context.
What we liked
- A 5.1 original reflector score against the 5.0 reference baseline, plus a separate 4.5 / 5 beam-pattern rating.
- Reflector low beam delivered 285% more light than the recorded halogen reference, while projector low beam improved by 231%.
- Measured output reached 12,200 lumens per kit, exceeding the recorded 10,000-lumen manufacturer claim.
What to consider
- The version 1.0 scores and lux readings are not directly interchangeable with today’s LED chart results.
- Projector high beam improved by only about 10%, despite the much stronger low-beam result.
- The full-size, non-clockable bulb, external driver, 46.3-watt-per-bulb draw, and active fan require careful fitment and electronics checks.
Build quality
DDM Tuning was already established in aftermarket HID lighting when we tested the SaberLED Pro 50W. Our earlier experience with its Premium Plus HID hardware had been positive, so this larger LED kit arrived with more credibility than an unknown high-claim product.

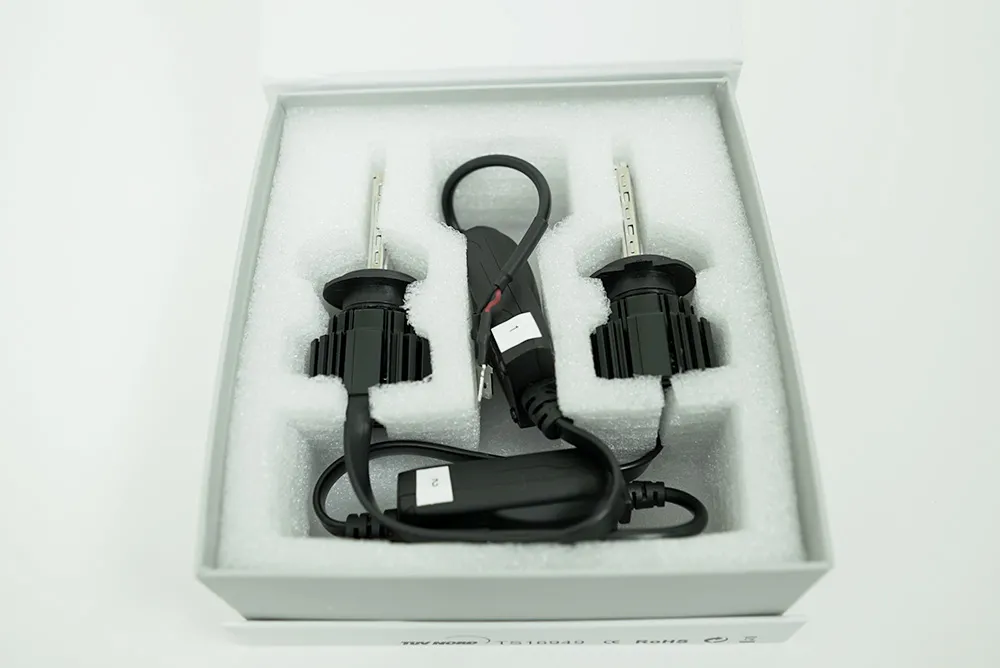

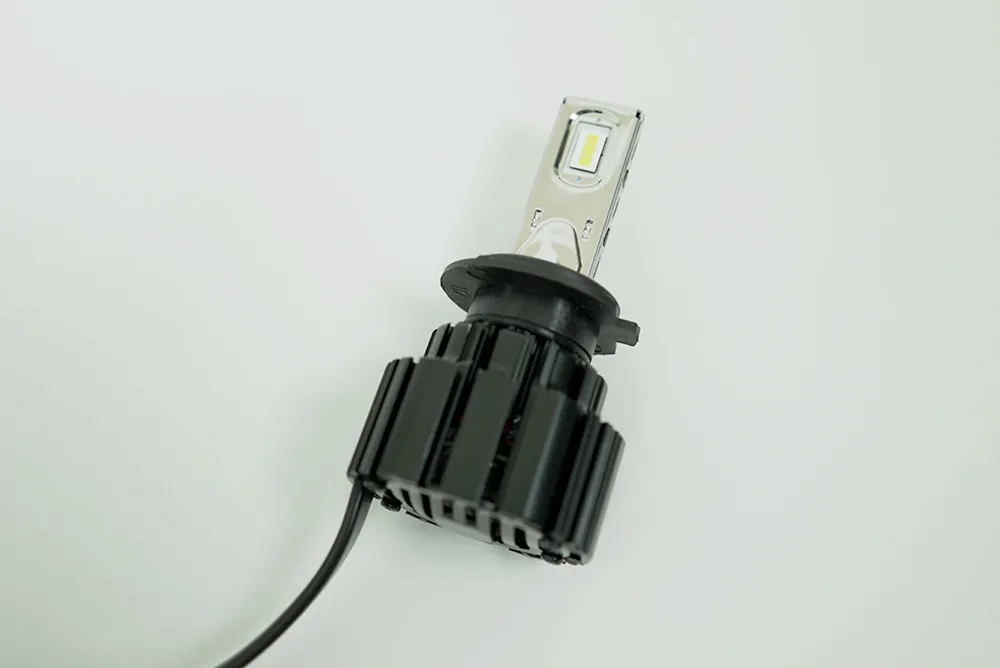

The SaberLED Pro felt substantial, using sturdy plastic and metal components, bright flat-mounted HML emitters, a large finned fan housing, and a separate non-removable driver. Its measured power and light output supported the 50W positioning rather than leaving it as a marketing label.
The model was offered in 6000K white and, in some sizes, 3000K yellow. BulbFacts tested only the 6000K white model; the yellow version is outside this review.
Reflector headlight performance
The SaberLED Pro 50W was strongest in the original reflector test, pairing a large low-beam improvement with a controlled pattern despite its very high total output.
Historical-test context: These measurements and scores come from the version 1.0 BulbFacts bench. The 5.0 value is a reference baseline, not a maximum, and the lux readings should not be positioned against today’s differently recorded chart range. These are reference-housing results rather than exact-vehicle tests.
The original scoring system did not include total lumens. This recorded score is preserved without treating it as a current-chart ranking.
- Low-beam hotspot
- 6,200 luxper bulb · historical v1.0 test
- High-beam output
- 5,700 luxper bulb · historical v1.0 test
- Glare measurement
- Not recordeddescribed as minimal
- Beam pattern
- 4.5 / 5separate pattern rating
A high-beam test image is not available in this review.
The SaberLED Pro recorded an original 5.1 reflector performance score. Because 5.0 was the test’s reference baseline rather than its maximum, the score is shown without a “/5” suffix. At the time, only the DeAuto LEDs and Lumibright XT1 scored higher, and total lumens were not part of that scoring formula.
Reflector low beam measured 6,200 lux per bulb, a documented 285% improvement over the recorded halogen reference. High beam measured 5,700 lux per bulb, about 63% above its recorded halogen result.
The separate 4.5 / 5 reflector beam-pattern rating describes shape rather than performance score. The original review described glare as minimal and comparable with other better-performing LEDs, but it did not preserve a numerical glare measurement. Housing optics, aim, and bulb seating can change those results in a selected vehicle.
Projector headlight performance
The projector result was useful overall, with a large low-beam gain but only a modest high-beam improvement in the original reference setup.
The original score is retained as recorded. It is not normalized or placed among products tested with the current chart method.
- Low-beam hotspot
- 2,900 luxper bulb · historical v1.0 test
- High-beam output
- 3,290 luxper bulb · historical v1.0 test
- Glare measurement
- Not recordedhistorical projector test
- Beam pattern
- Not ratedno numerical record
A high-beam test image is not available in this review.
The original projector performance score was 4.3, again using 5.0 as the reference baseline rather than a maximum. Total lumens were not part of that historical score.
Projector low beam measured 2,900 lux per bulb, a documented 231% improvement over the recorded halogen reference. That was the more convincing projector result.
Projector high beam measured 3,290 lux per bulb, only about 10% above the halogen result in the original setup. The archived review did not record numerical projector glare or beam-pattern ratings, so neither is inferred here. Current buyers should compare newer products tested on the current bench.
Output, color, and stability
The SaberLED Pro 50W exceeded its recorded lumen claim and measured substantially warmer than its 6000K product label.
DDM SaberLED 50W Kelvin
DDM SaberLED 50W lumens
BulbFacts tested the 6000K white SaberLED Pro 50W at 5,250K. That is whiter than halogen but less blue than many 6000K-branded LEDs, landing closer to a clean OEM-style white than an icy-blue aftermarket look.
DDM claimed 10,000 lumens per kit, while the recorded measurement reached 12,200 lumens per kit. An approximate 6,100-lumen-per-bulb value can be derived from that pair measurement, but it was not separately measured as a single-bulb result.
The original review called this stable output, but it did not preserve cold-start, two-minute, and 30-minute lumen readings or an output-drop percentage. Those stability fields remain unavailable rather than being reconstructed.
Installation and cooling
The large non-clockable bulb, external driver, near-halogen electrical draw, and active cooling system are the main practical checks before installing remaining stock.
Measured draw
30-min temp
Fan noise
Physical size and fit
The bulb measured about 39 mm at its widest point, 37 mm from the base to the rear, and 40 mm through the diode-handle dimension. The external, non-removable driver measured 59 × 35 × 21 mm.
The SaberLED Pro does not rotate or clock. Some housings may seat it close to the halogen filament orientation, but others may not. Confirm bulb type, seating angle, rear clearance, dust-cover space, driver placement, and vehicle electronics rather than treating general housing results as exact-vehicle fitment.
Power draw and cooling
The kit measured 46.3 watts per bulb. The 92.6-watt pair total is derived from that per-bulb result. This is unusually close to the draw of the halogen bulb it replaces and can reduce bulb-out warnings in some applications, but it is not a universal decoder-free guarantee.
After 30 minutes, running temperature measured 120°F / 49°C. The active fan kept the HML emitters comparatively cool in this bench test; that short thermal result is not evidence of long-term lifespan.
Noise, electronics, and DRL behavior
Fan noise was recorded at 69 dB, with the original narrative noting a 68–69 dB reading from about one inch away. No in-cabin noise measurement was recorded.
The original article marked the kit CANBUS-compatible and noted that its near-halogen draw may avoid extra decoders or resistors in many low-beam applications. Vehicle monitoring systems vary, so that remains a bench-era observation rather than a compatibility guarantee.
The kit was fully dimmable on the tested PWM circuit and dimmed to 6.0 volts on a standard power line. Confirm low-voltage or PWM daytime-running-light behavior immediately after installation.
Warranty and long-term testing
Coverage
DDM Tuning listed a two-year warranty for the SaberLED Pro 50W. That is manufacturer coverage, not evidence of measured service life, and current support terms should be confirmed because the product is discontinued.
Long-term runtime testing is N/A in this review. The 30-minute temperature result does not substitute for a completed durability test.
Should you buy it?
The SaberLED 50W Pro Series remains an impressive historical reflector result. Its 5.1 original performance score, separate 4.5 / 5 beam-pattern rating, large recorded low-beam gain, and 12,200-lumen kit output explain why it stood out in the original test group.
The limitations are equally important: projector high beam improved by only about 10%, the bulb cannot be clocked, the external driver needs room, and the fan was measured at 69 dB near the source. Exact-vehicle fitment and electronics behavior remain unconfirmed.
Because the product is discontinued and the measurements come from the version 1.0 bench, current buyers should use the newer LED chart and recommendations rather than treating these historical numbers as a current ranking. Existing owners can use this page to understand the recorded behavior of their kit.
Compare current DDM products and other tested LEDs before deciding on a replacement.
Full measurements and specifications
Open this reference for every recorded measurement, specification, unavailable field, and test-method detail. The main reflector and projector findings remain visible above.
Show all recorded measurements and specificationsFive groups · version 1.0 bench record
Measured output
- Reflector performance score
- 5.1 in the original version 1.0 test; 5.0 reference baseline, not a maximum
- Reflector low-beam hotspot
- 6,200 lux per bulb in the historical test
- Reflector low-beam improvement
- 285% over the recorded halogen reference
- Reflector high-beam output
- 5,700 lux per bulb in the historical test
- Reflector high-beam improvement
- 63% over the recorded halogen reference
- Projector performance score
- 4.3 in the original version 1.0 test; 5.0 reference baseline, not a maximum
- Projector low-beam hotspot
- 2,900 lux per bulb in the historical test
- Projector low-beam improvement
- 231% over the recorded halogen reference
- Projector high-beam output
- 3,290 lux per bulb in the historical test
- Projector high-beam improvement
- About 10% over the recorded halogen reference
- Measured lumens
- 12,200 lm per kit; about 6,100 lm per bulb derived from the pair measurement
- Lumen improvement
- 2,200 lm above the recorded manufacturer claim of 10,000 lm per kit
Beam quality
- Reflector beam-pattern rating
- 4.5 / 5 in the original test record; separate from performance score
- Projector beam-pattern rating
- Not numerically recorded in this review
- Reflector glare measurement
- Not recorded; described as minimal in the reference housing
- Projector glare measurement
- Not recorded in this review
Power, color, and thermal behavior
- Measured color temperature
- 5,250 K for the tested 6000K white model; 3000K yellow variant not tested
- Measured electrical draw
- 46.3 watts per bulb
- Derived pair draw
- 92.6 watts per pair
- 30-minute running temperature
- 120°F / 49°C
- Cold-start to 30-minute output drop
- Not recorded in this review
- 2-minute to 30-minute output drop
- Not recorded in this review
- Fan noise
- 69 dB; original narrative noted 68–69 dB at about one inch; cabin measurement not recorded
- Cooling method
- Fan; active cooling
Dimensions, features, and recorded compatibility
- Maximum bulb width
- 39 mm
- Base-to-rear dimension
- 37 mm
- Diode-handle dimension
- 40 mm
- Rotatable H7 collar
- No clocking adjustment recorded; reviewed bulb size not identified as H7 in this page
- LED diodes
- HML
- Emitter layout
- Flat; 12 emitters total per bulb in the original record
- Driver configuration
- External, non-removable; 59 × 35 × 21 mm (W × L × D)
- Recorded product sizes
- Not listed in this review
- CANBUS behavior
- Marked compatible in the original article; vehicle-specific testing remains necessary
- Exact-vehicle fitment
- Unconfirmed; verify bulb type, seating, orientation, rear clearance, driver placement, dust-cover space, and electronics
- Housing context
- Version 1.0 reflector and projector reference housings; beam photographs recorded at 12 feet
Warranty and test status
- Estimated price
- N/A; not recorded in this review; product discontinued and absent from the current LED dataset
- Recorded warranty
- 2 years in the original review
- Long-term lifespan
- N/A; no completed runtime-hour result recorded
- DRL / high-beam dimming
- Yes in the tested PWM circuit; dimmed to 6.0 volts on a standard power line
- Radio-frequency interference
- N/A; unconfirmed
- High-beam test photographs
- Not available in this review for either reference housing
- Publication date
- September 22, 2019
- Last updated
- May 31, 2026
- Test version
- Version 1.0 bench record; historical scores and lux values are not treated as current-chart rankings
Facts listed above are from the original version 1.0 BulbFacts test process. See how we test for current procedures and use the current LED chart for current DDM comparisons.
