DDM Tuning Plus / Ultra HID Kit Review
DDM Tuning Plus / Ultra is the current BulbFacts value-focused HID recommendation, pairing strong 35-watt projector output with clean 5,150K color, a CANBUS option, broad size coverage, lifetime warranty coverage, and pricing far below the premium kits.
- Overall HID score
- 4.1current chart score
- Low-beam output
- 532 luxprojector test
- High-beam output
- 2,935 luxprojector test
- Estimated price
- $90–120Plus and Ultra records
Our verdict
DDM Plus / Ultra is the value play in the current projector HID recommendations. It measured 532 low-beam lux and 2,935 high-beam lux, with 4,625 lumens per kit and useful 5,150K color. The key choice is between the lower-priced Plus package and the Ultra/Hylux ballast package; both current records use the same 35W performance measurements.
What we liked
- Strong low and high beam for substantially less than the premium alternatives.
- Useful 5,150K color and a solid 4,625-lumen kit result.
- Broad recorded sizing, CANBUS option, and lifetime warranty coverage.
What to consider
- The Plus and Ultra distinction is package and price, not a separate output result here.
- HID installation requires ballasts, igniters, wiring, mounting, clearance, and warm-up.
- Reflector use, exact-vehicle behavior, glare, beam pattern, temperature, and measured lifespan remain unconfirmed.
Plus for value, Ultra/Hylux for the ballast package

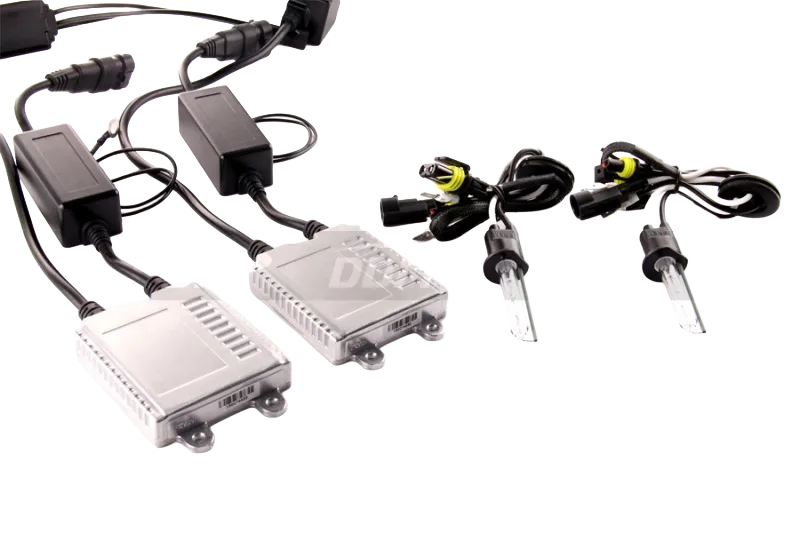

The DDM Plus and Ultra records share the same current 35-watt measurements. Plus is the lower-priced value package, while Ultra/Hylux is the step-up ballast package. That distinction should not be read as a second, unrecorded performance test.

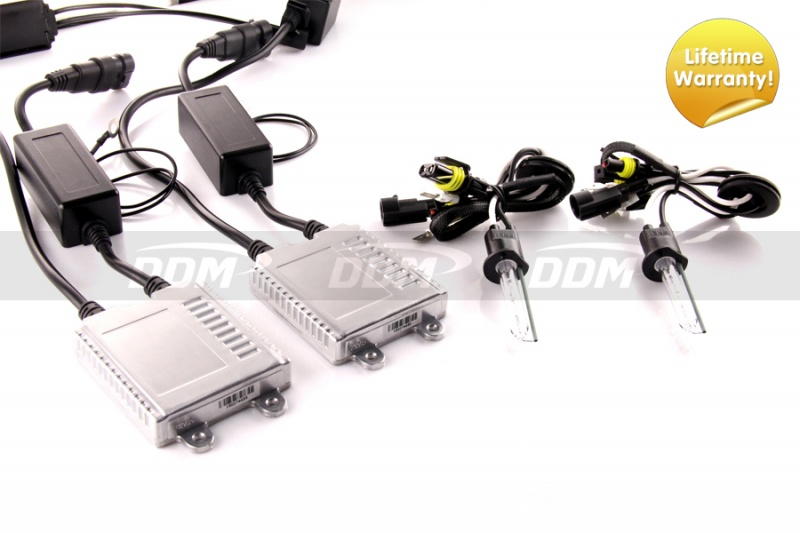

Both are complete HID systems with capsules, ballasts, igniters, wiring, and connectors. Those components require secure mounting, moisture protection, rear-housing clearance, and deliberate cable routing.
Recorded sizes include H1, H3, H4/9003, H7, H8/H9/H11, H10/9145, H13/9008, 9004/HB1, 9005/HB3, 9006/HB4, 9007/HB5, and 9012/HIR2. Confirm the exact base, projector housing, wiring, dust-cap clearance, and local road-use rules before ordering.
Close to the premium kits for much less money
The current 35W projector record is why DDM is the value-focused recommendation.
About these tests: Measurements come from the BulbFacts projector reference housing for consistent product comparison. They are not exact-vehicle results; projector optics, bulb seating, lens condition, aim, wiring voltage, and warm-up can change real-world output.
Where its lux readings sit
Average hotspot
DDM Tuning Plus and Ultra measured 532 lux on low beam compared with 13 recorded aftermarket HID kits and the 284-lux halogen projector reference.
Average output
DDM Tuning Plus and Ultra measured 2,935 lux on high beam compared with 13 recorded aftermarket HID kits and the 935-lux halogen projector reference.
Gray dots show every recorded HID kit. Purple dots mark the other current recommendations, the blue marker is this kit, and the dashed marker is the halogen projector reference.
- Reference low beam
- 284 lux
- Reference high beam
- 935 lux
- Reference color
- 3,425 K
- Reference output
- 1,564 lm/bulb
DDM reaches 532 low lux and 2,935 high lux. GTR Ultra HID records 601 low and 2,966 high, while Morimoto XB Elite 2.0 reaches 554 low and 3,088 high. DDM therefore stays closer to the premium output than its price suggests.
The Plus and Ultra records share these measurements, so the current evidence supports a package-and-price decision rather than separate performance claims for the two configurations.
Overall HID-kit score compared
DDM's 4.1 score sits below the 4.6 GTR and Morimoto premium products and the 4.8 XenonDepot chart entry, but well above the 2.4 XtremeVision entry. XtremeVision records 456 low lux, 1762 high lux, and 7250K. Score is a summary; DDM's case is the amount of measured output delivered for the price.
Useful 5,150K color and solid measured output
The current result stays in the practical white range while retaining most of the premium kits' output.
DDM Plus / Ultra Kelvin
DDM Plus / Ultra lumens
We measured 5,150K, placing DDM near the warm end of the current 4,450–7,400K HID chart range. It is slightly cooler than the 5,000K GTR and Morimoto results without entering the very blue budget-kit range.
Total output measured 4,625 lumens per kit, or approximately 2,313 lumens per bulb. The chart compares HID-kit totals on the same basis; the separate halogen reference is listed per bulb and is not presented as a direct total-lumen percentage.
Ballasts, wiring, warm-up, and vehicle compatibility
HID performance comes with more installation work and more vehicle-specific checks than a conventional bulb replacement.
- Tested ballast
- 35 W shared current record
- CANBUS
- Option vehicle behavior still varies
- Recorded noise
- Silent no cooling fan
- Warm-up
- Required time to stable output not recorded
Plan the complete system
HID capsules must ignite and warm up before reaching stable color and brightness. The current chart does not record ignition time, cold-start behavior, running temperature, radio interference, or long-term ballast durability.
Mount ballasts and igniters securely, protect connections from heat and moisture, preserve dust-cap sealing, and verify the vehicle's electrical behavior. A CANBUS option may help, but it is not a universal compatibility guarantee.
Recorded sizes and vehicle fit
The chart records H1, H3, H4/9003, H7, H8/H9/H11, H10/9145, H13/9008, 9004/HB1, 9005/HB3, 9006/HB4, 9007/HB5, and 9012/HIR2. A matching base alone does not confirm optical, electrical, or physical compatibility.
Confirm a compatible projector housing, bulb seating, rear clearance, low/high-beam configuration, wiring condition, aiming access, and local rules before installation.
Value pricing with lifetime coverage
The price gap is much larger than the measured output gap, while the warranty term is coverage—not evidence of measured lifespan.
Coverage
- Plus estimated price
- $90–108 current chart estimate
- Ultra estimated price
- $120 current chart estimate
- Warranty
- Lifetime confirm current terms and exclusions
- Measured lifespan
- N/A long-term runtime not recorded
What the value packages deliver
The Plus record lists roughly $90–108, while Ultra/Hylux lists roughly $120. Both share the current 532/2,935-lux result, 4,625-lumen total, 5,150K color, recorded sizing, CANBUS option, and lifetime warranty coverage.
That makes Plus the price-first choice and Ultra the step-up ballast-package choice. Neither record includes a measured lifespan result.
Current alternatives
GTR Ultra HID records 601 low lux and 2,966 high lux with lifetime coverage at roughly $329. Morimoto XB Elite 2.0 records 554 low lux and 3,088 high lux with five-year coverage at roughly $311.
Choose DDM for output per dollar, GTR for the strongest recommended low beam, or Morimoto for the strongest recommended high beam.
Should you buy it?
DDM Plus / Ultra belongs on the shortlist for compatible halogen projector headlights when output per dollar matters more than premium positioning.
The measured case is straightforward: 532 low lux and 2,935 high lux stay close to the premium recommendations, 4,625 total lumens is solid, and 5,150K remains useful white. Plus and Ultra share the current performance result; choose based on package and price.
Skip it when you need a simple bulb-only install, have a reflector housing, cannot verify electrical and physical fit, or specifically want the premium low- or high-beam leader. GTR and Morimoto cost much more, but each owns a stronger part of the beam.
If the projector-only scope, measured output, installation requirements, package choice, and warranty coverage fit your vehicle and priorities, check the current prices or compare the complete chart before deciding.
Full measurements and specifications
Open this reference for every recorded measurement, specification, unavailable field, configuration difference, and test-context detail. The main projector findings remain visible above.
Show all recorded measurements and specificationsFive groups · current HID-kit record
Measured output
- Overall HID-kit score
- 4.1; current chart score
- Projector low-beam hotspot
- 532 lux
- Projector low-beam change
- About 87% above halogen reference
- Projector high-beam output
- 2,935 lux
- Projector high-beam change
- About 214% above halogen reference
- Measured lumens
- 4,625 lm per kit
- Estimated per-bulb output
- Approximately 2,313 lm
Beam quality
- Tested housing
- Projector reference housing
- Reflector result
- Not recorded; reflector use is not recommended
- Beam-pattern rating
- Not recorded in the current HID-kit data
- Glare measurement
- Not recorded in the current HID-kit data
- Dedicated beam photographs
- Not recorded for this review
- Exact-vehicle optics
- Unconfirmed; housing, seating, aim, and lens condition vary
Color, power, and test configuration
- Measured color temperature
- 5,150 K
- Tested ballast rating
- 35 watts; shared current record
- Light source
- Aftermarket HID arc capsule
- Recorded operating noise
- Silent
- Warm-up behavior
- Required; time to stable output not recorded
- Running temperature
- Not recorded
- Radio interference
- Not recorded
Dimensions, features, and recorded compatibility
- Recorded product sizes
- H1, H3, H4/9003, H7, H8/H9/H11, H10/9145, H13/9008, 9004/HB1, 9005/HB3, 9006/HB4, 9007/HB5, 9012/HIR2
- Product identity
- DDM Plus and Ultra/Hylux 35W aftermarket HID conversion records; not OE D-series xenon bulbs or DDM LED kits
- CANBUS status
- Option available; exact-vehicle behavior unconfirmed
- Relay or decoder requirement
- Not recorded; vehicle-specific
- Physical clearance
- Unconfirmed; verify ballasts, igniters, wiring, grommets, and dust caps
- Housing context
- Compatible halogen projector housing; reflector use is not recommended
- Exact-vehicle fitment
- Unconfirmed; verify bulb base, optics, wiring, clearance, and vehicle guide
Warranty, price, and test status
- Plus estimated price
- $90–108
- Ultra estimated price
- $120
- Recorded warranty
- Lifetime for both current records; confirm terms, exclusions, and claim process
- Measured lifespan
- N/A; long-term runtime not recorded
- Publication date
- June 12, 2026
- Last updated
- September 16, 2026
- Test status
- Shared current 35W aftermarket HID-kit performance record
- Current position
- Value-focused projector HID recommendation
Facts above follow the DDM Plus and Ultra/Hylux records in the current BulbFacts aftermarket HID-kit data. See how we test for current procedures. Product applicability still depends on exact bulb size, projector design, vehicle configuration, wiring, installation, aim, and local road-use rules.
