DDM Tuning SaberLED ProX 65W LED Headlight Kit Review





July 28, 2025
Review based on our version 2.1 test bench.
In the constantly growing world of LED headlight kits, DDM Tuning is a name that's been around for years, often known for offering strong performance at a more affordable price point. With the release of their 65W Saber ProX LED kit, they’ve moved firmly into the high-output category, going head-to-head with some of the top names in the market.
When we first saw the specs—65 watts of power, over 5800 lumens per bulb, and CANBUS built-in, we were excited to get them tested. But it was the real-world reflector performance that made us take a second look. Brightness is one thing, but usable output with good beam control and minimal glare is what really separates the top performers from the rest. And as of this review, the SaberLED ProX 65W leads our reflector testing charts.
But that’s not all we test for. Just like every product we review, we ran the ProX 65W LEDs through our independent testing process, which includes lux readings at distance, glare measurements, temperature, noise, dimmability, CANBUS compatibility, and more. We run every bulb for at least 30 minutes to check how it performs under real operating conditions.
And just like always, we do not accept sponsored products or paid reviews. We purchased this kit ourselves directly from DDM Tuning to ensure the results you see here are authentic and unbiased. You can view our full testing methodology here.
So, how does this powerful LED kit stack up in both reflector and projector housings? Let’s dig into the results.
In reflector-style headlight housings, the DDM Tuning 65W Saber ProX delivers standout performance. Our testing recorded a blazing 1614 lux on low beams and 2087 lux on high beams, which translates to a +333% and +138% increase in brightness over standard halogen bulbs, respectively. These numbers put the Saber ProX near the top of our reflector test chart.

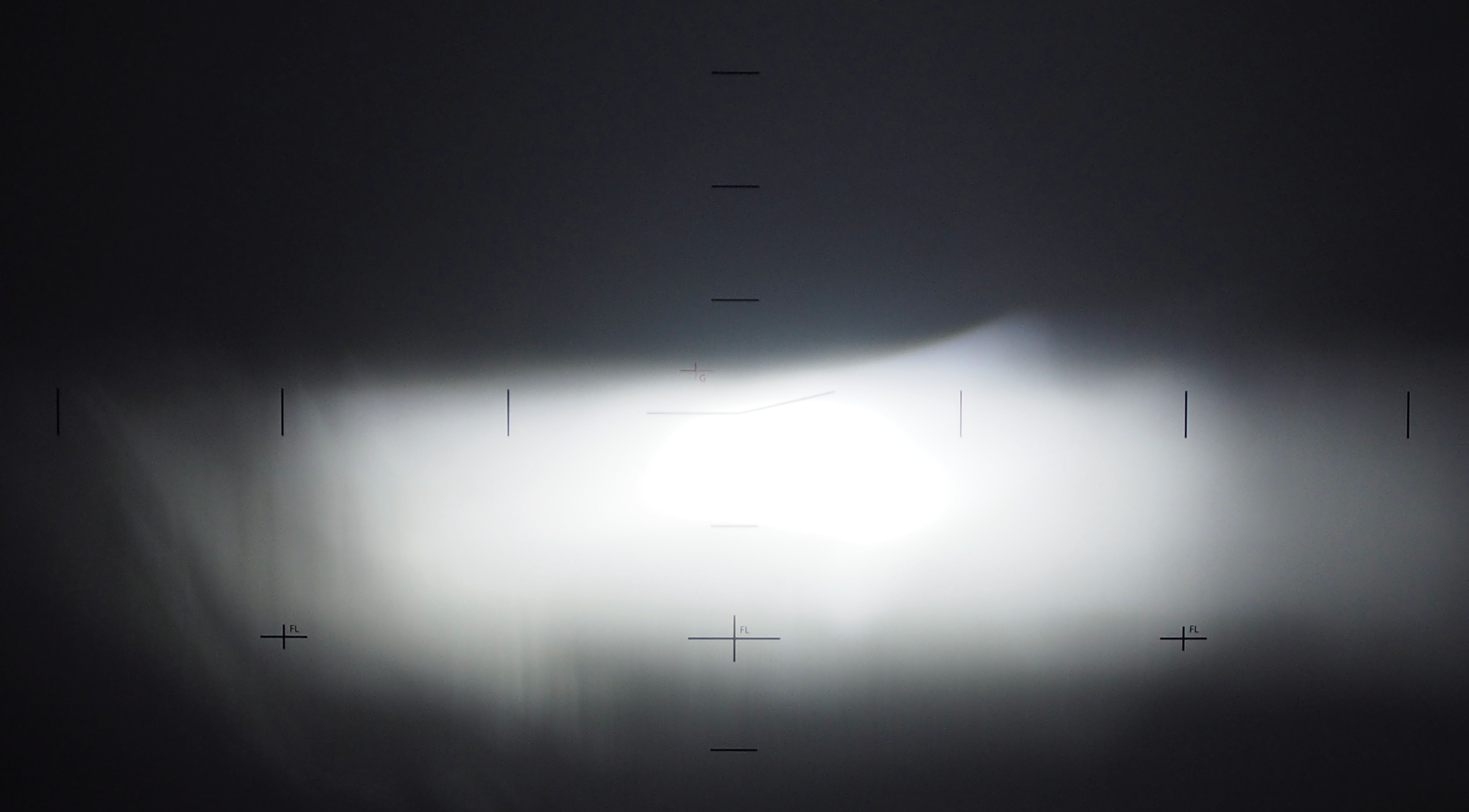

Reflector Beam Pattern @ 12'
But what really caught our attention was how well-controlled the beam pattern was despite the raw intensity. Reflector housings are notoriously difficult to manage at higher brightness levels due to increased glare risk, but the Saber ProX kept things in check. Our glare measurement came in at 218 lux, which is well within acceptable limits for safe night driving and comparable to many lower-output kits.

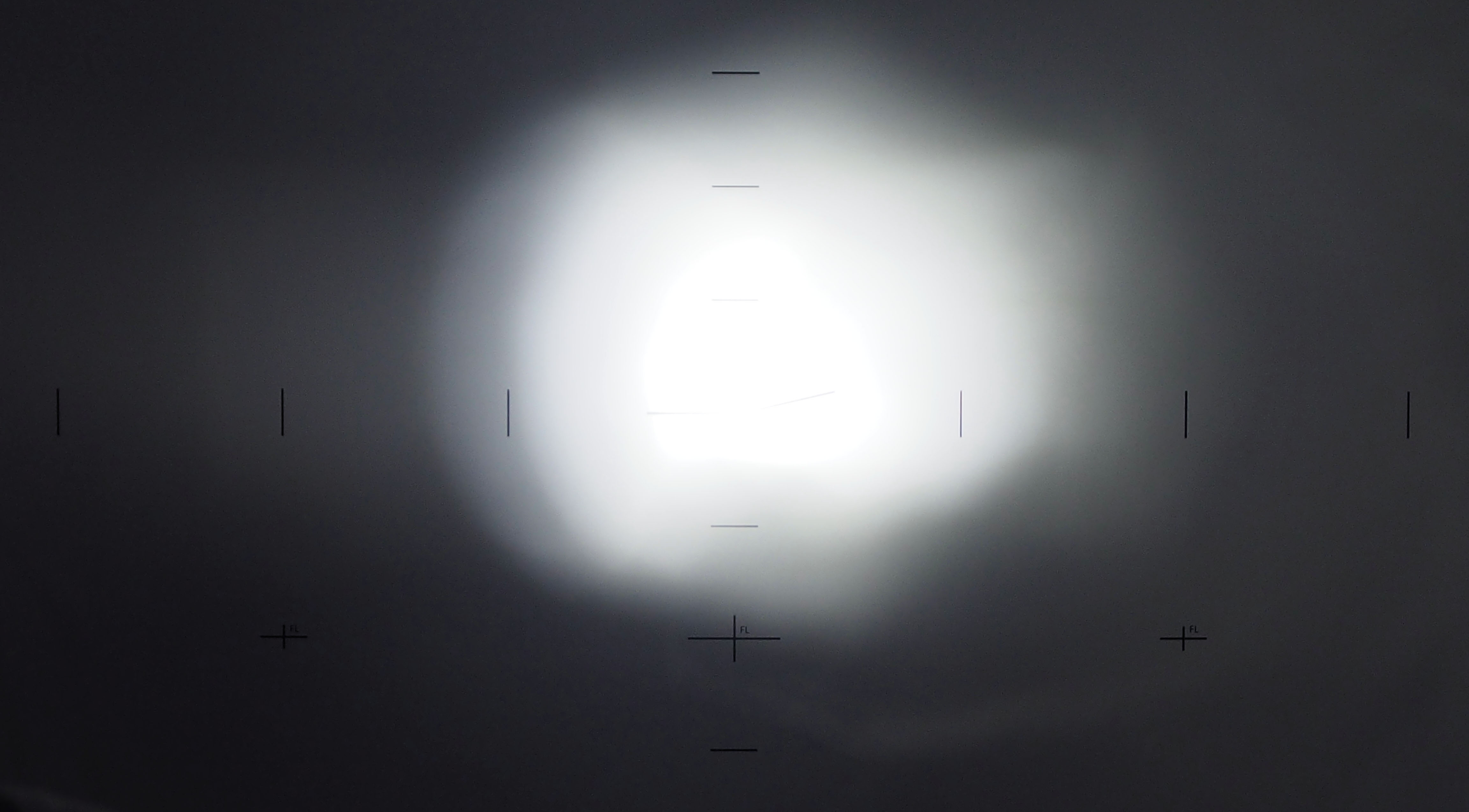

In terms of beam shape, the low beam pattern was wide and flat, with a solid hotspot and good vertical cutoff control. High beam coverage was strong across the road with minimal scatter. It’s a noticeable improvement in clarity and distance, especially in rural or unlit conditions.
If you're running reflector headlights and want maximum visibility without blinding oncoming traffic, the Saber ProX strikes a rare and impressive balance between output and control.

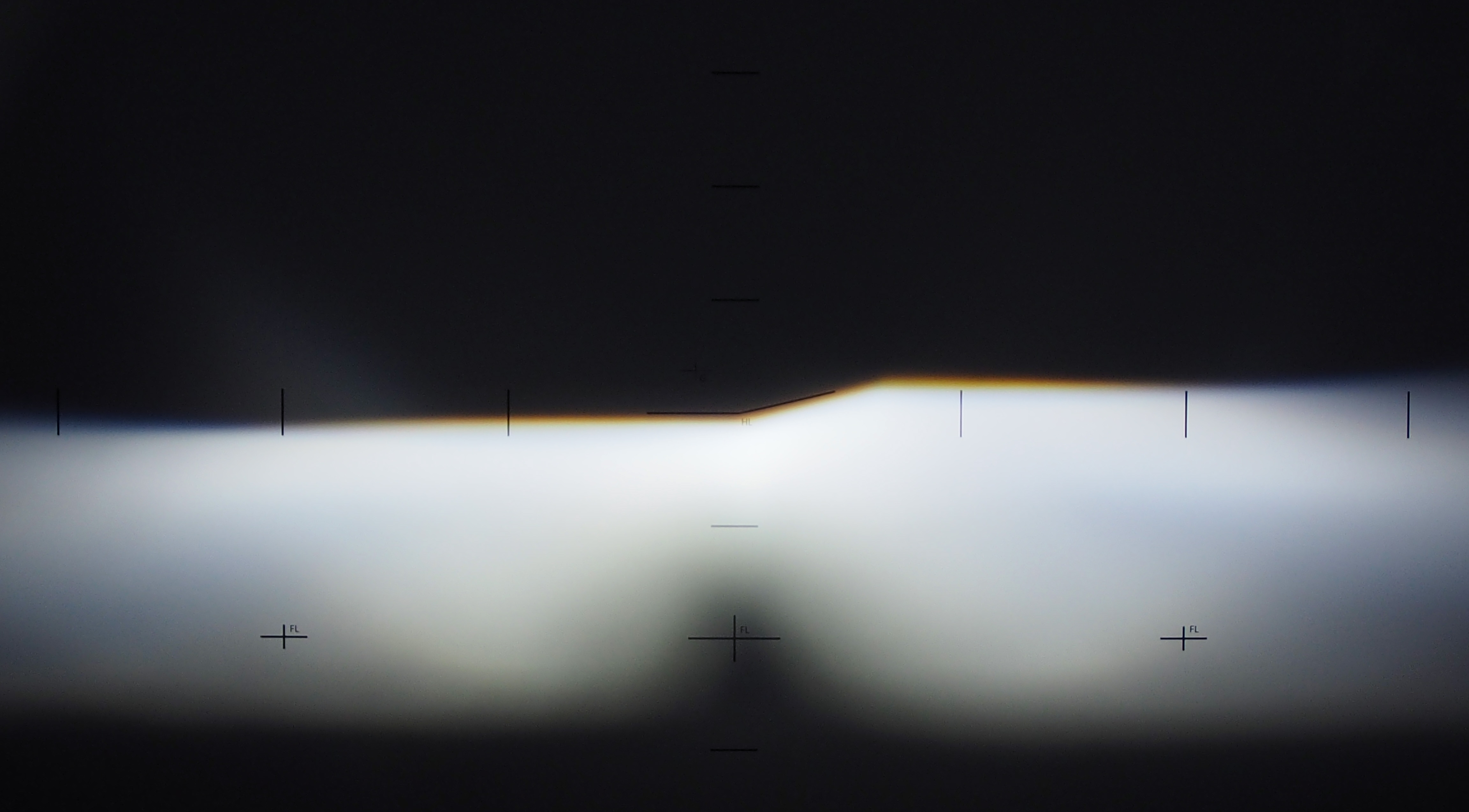

Projector Low Beam Pattern @ 12'

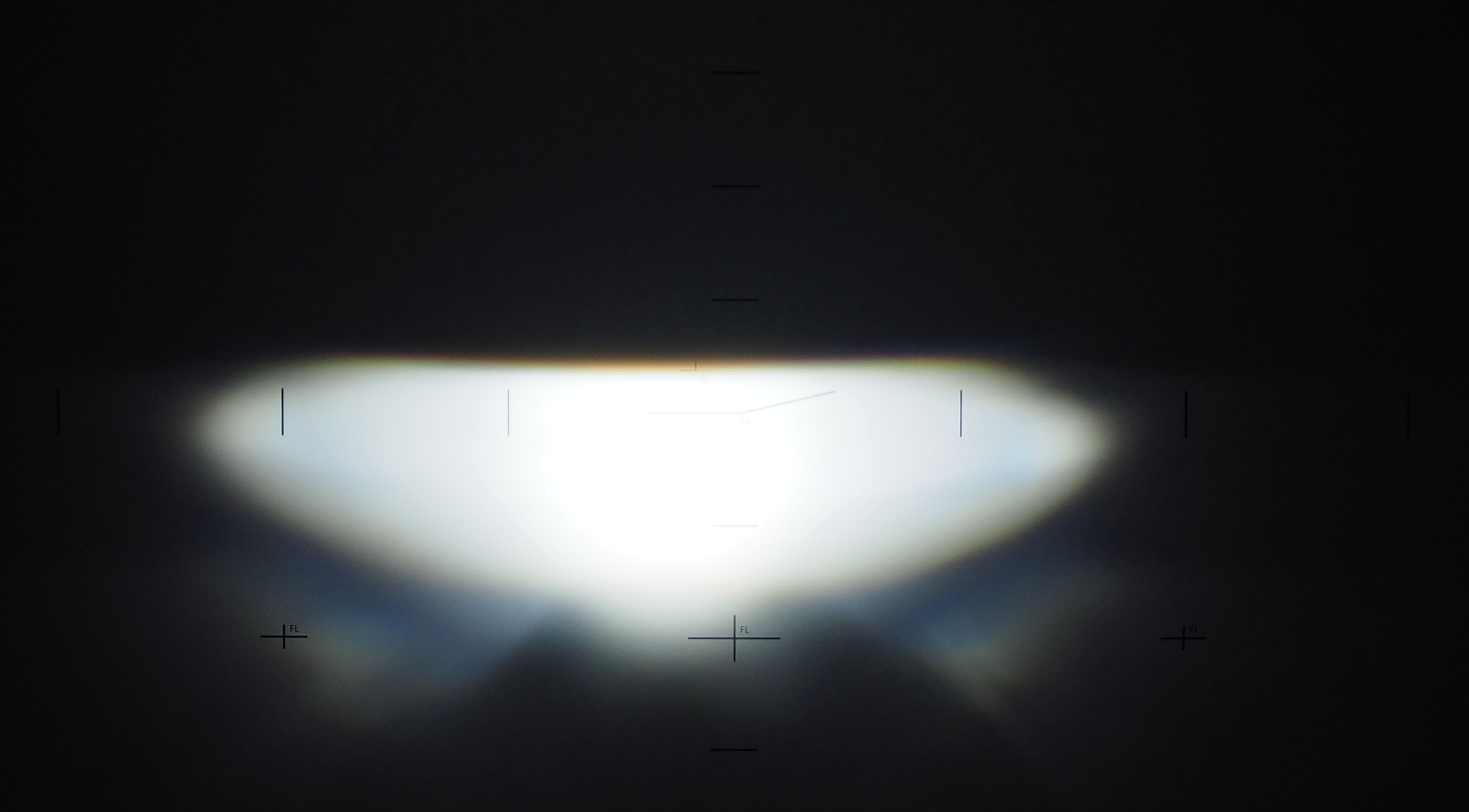

While the DDM Tuning Saber ProX shines in reflector housings, its performance in projector-style headlights is more mixed. Our test results showed 607 lux on low beam and 665 lux on high beam, representing a +164% and +51% increase over halogen, respectively. These are solid gains, but not class-leading compared to other projector-optimized kits we've tested.
The beam pattern was clean and well-defined, with a centered hotspot and a sharp horizontal cutoff—hallmarks of a properly focused projector setup. However, the Saber ProX didn’t make full use of the projector optics like some newer-generation LEDs can. There was a bit of light falloff toward the upper edges of the beam, and while visibility was still much improved over stock, it didn’t quite match the precision or uniformity of top-tier projector kits like the Hikari Future or GTR Ultra 3.
That said, the Saber ProX still delivers good usable light in projectors and remains a strong option, especially if you're looking for an all-around performer that can handle both housing types. But if you’re specifically looking for the best possible output and beam shape in projector housings, there are more refined choices on the market.

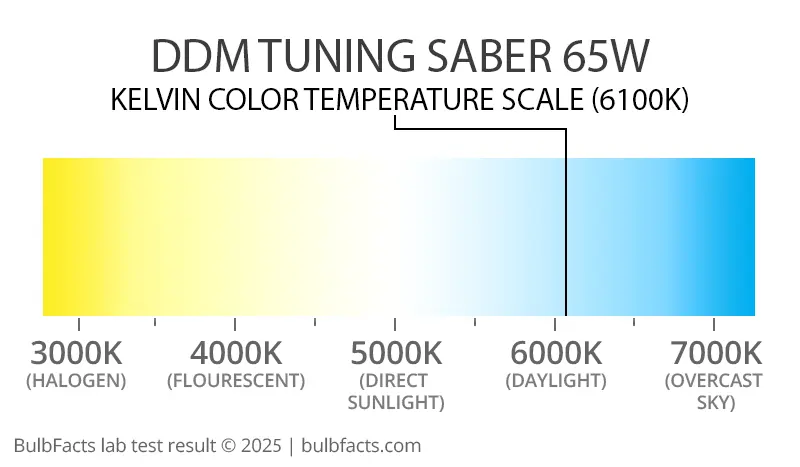

The Saber ProX delivers a crisp, modern appearance thanks to its 6100K color temperature, which sits slightly cooler than pure white. This gives the beam a clean white output with a slight blue tint, offering a balance between visibility and aesthetics.
In testing, the color remained consistent over time and across both beam modes, without drifting into the overly blue or harsh cool-white territory that can cause eye fatigue. The slight blue hue adds a premium look to the headlights, especially noticeable in clear weather and dry road conditions.
While not as warm or neutral as some 5000K kits we’ve tested, the 6100K output still maintains excellent road contrast and clarity. It's a solid choice for drivers who want their lights to look sharp without sacrificing too much in terms of performance or visibility in rain or fog.

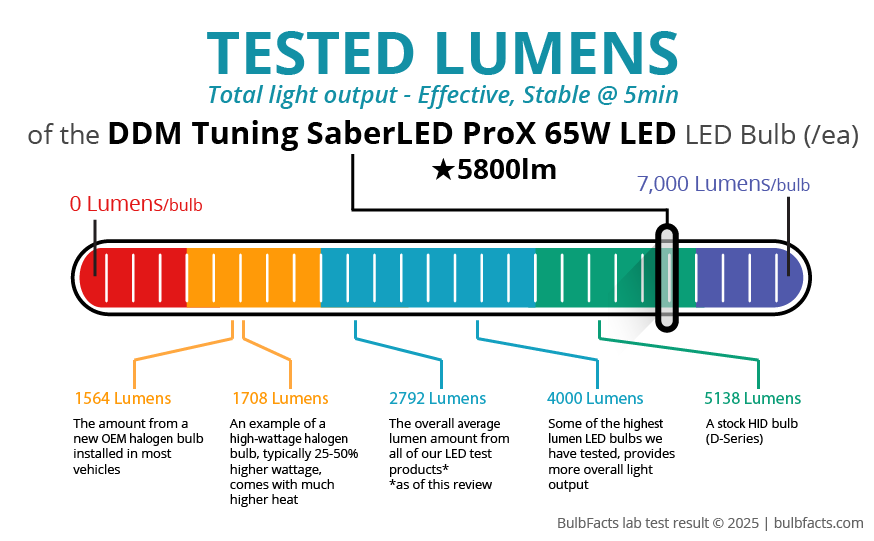

The DDM Saber ProX comes in strong with a measured 11,600 lumens per kit (5800 per bulb), representing a +276% increase over stock halogen headlights. This high lumen rating places it firmly in the performance category, especially when you consider that most mid-range LED kits top out around 4000–5000 lumens.
What makes the Saber ProX even more impressive is how it translates those lumens into usable light. High lumen numbers don’t always guarantee good visibility, but in this case, the beam pattern makes excellent use of the available output. The result is a headlight that throws a bright, wide beam with plenty of punch down the road without looking artificially inflated or unfocused.
In practical terms, that means better visibility in open areas, easier spotting of road signs and lane markings, and a general sense of increased confidence when driving at night.
One of the most impressive aspects of the DDM Tuning 65W Saber ProX is how consistent its output remains over time. In our extended runtime testing, we measured the light output at startup, at the 2-minute mark, and again at 30 minutes after full thermal stabilization.
The drop in output from 2 minutes to 30 minutes was only 4.2%, which is excellent for a high-wattage LED kit. Many powerful LEDs experience noticeable dimming once fully warmed up, but the Saber ProX holds its brightness extremely well.
This level of stability earns it an A− rating in our power drop category, and it reassures users that what you see during initial testing will closely match real-world performance on longer drives.

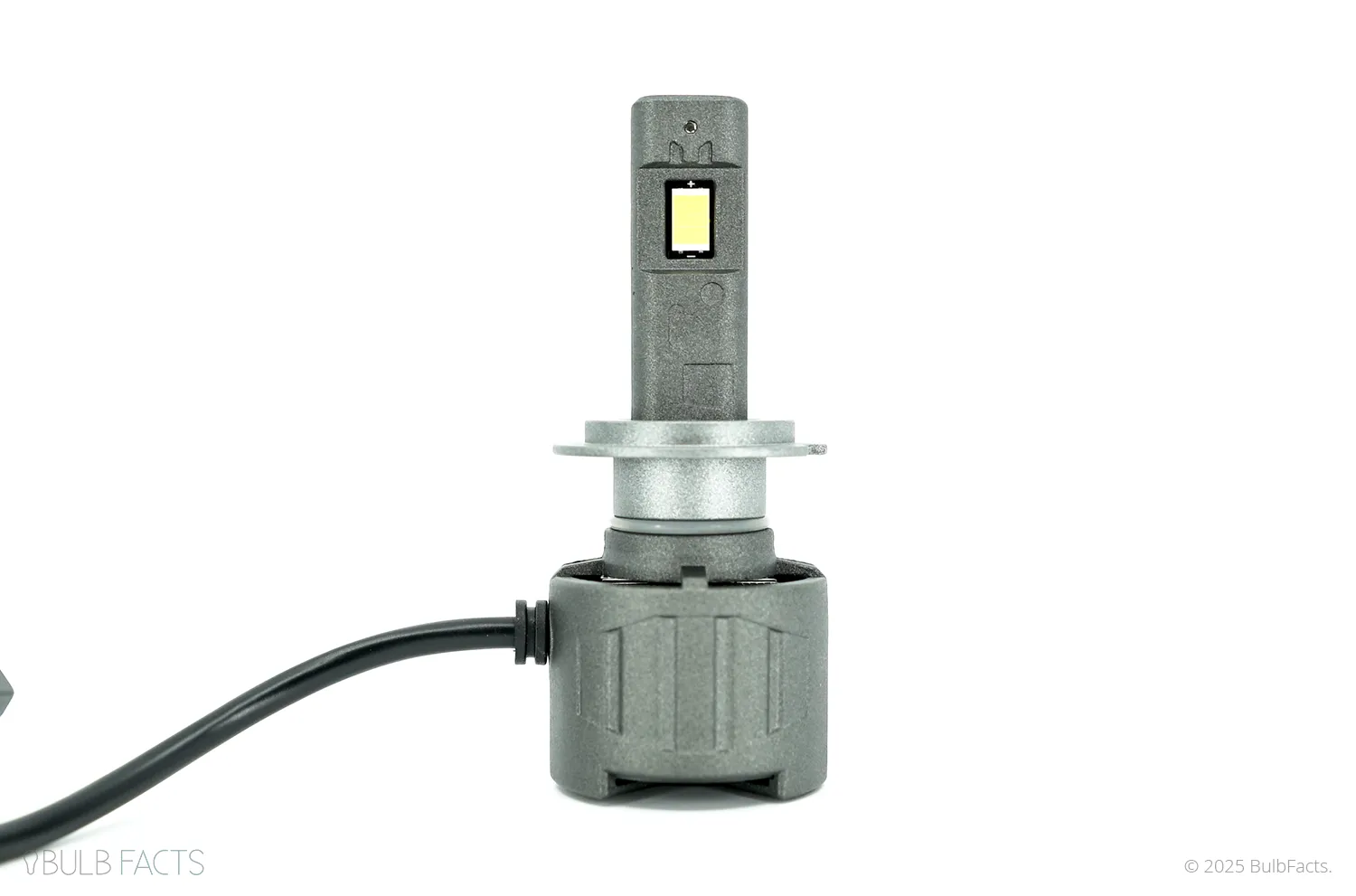

The Saber ProX uses custom high-output LED diodes mounted on a slim copper PCB for optimal thermal transfer and beam focus. DDM hasn’t disclosed the exact diode model, but based on performance and consistency, it’s safe to say they’re leveraging premium components in this kit.
Each bulb draws 34.85 watts, with a total power draw of 69.7 watts per kit. That puts it on the higher end of LED kits, but the Saber ProX converts that power into real light output effectively.

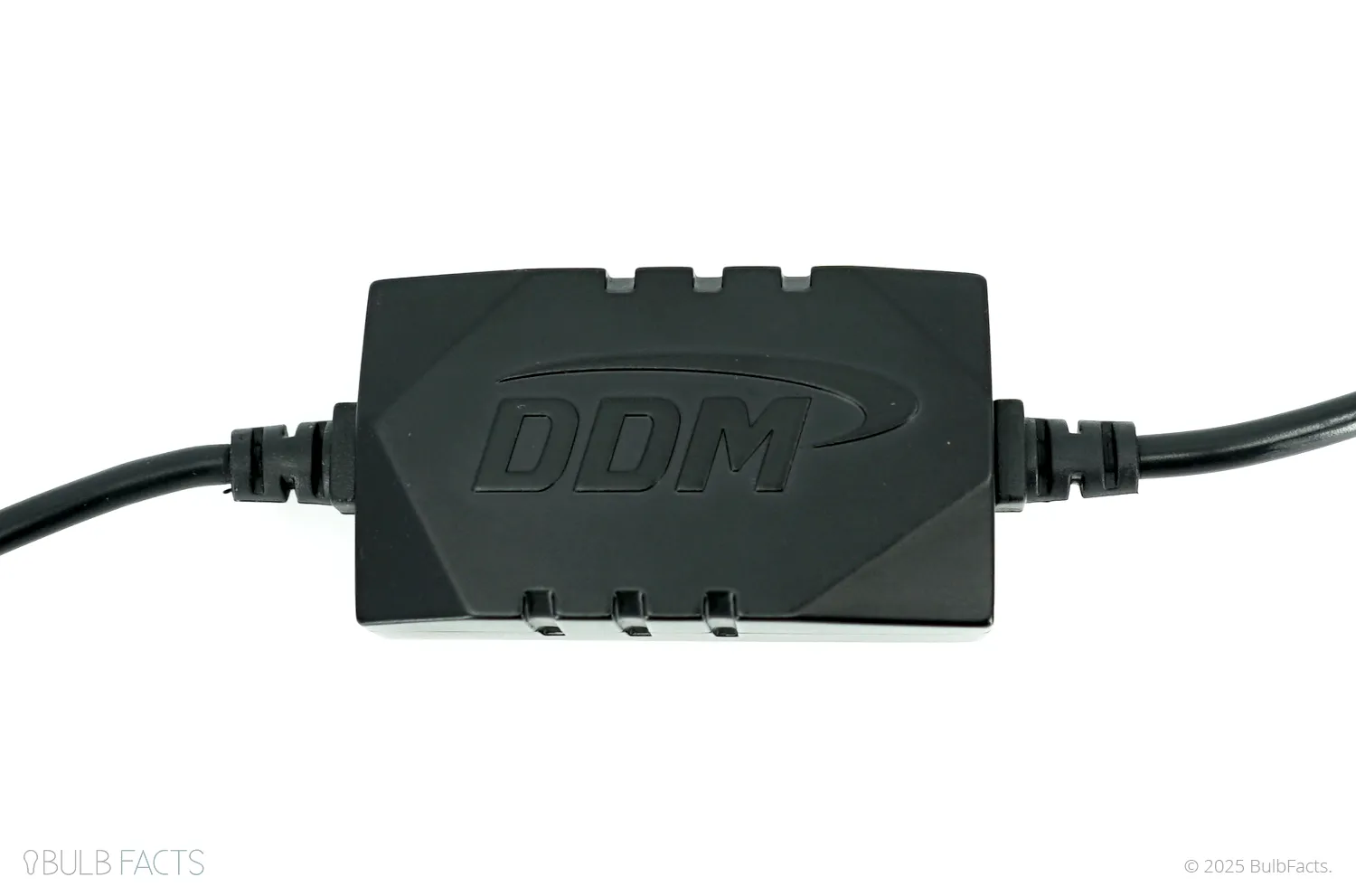

CANBUS compatibility is excellent. We tested this kit in several sensitive vehicles and found no issues with dashboard errors or flickering. For drivers with newer vehicles or systems that typically resist LED upgrades, this kit is a reliable plug-and-play solution.
Thermal performance is also noteworthy. Despite the high power draw, the Saber ProX maintained a stable operating temperature of 119°F after 30 minutes of runtime. This is well within safe limits and reflects a strong cooling design. The bulbs use active fan cooling, and while the fans do generate some noise—measured at 68 dB—it's nothing that can be heard from inside the vehicle once installed.
In short, the Saber ProX is a well-balanced kit that pairs strong electrical compatibility with effective thermal management, making it a dependable performer even in demanding applications.
Daytime running lights (DRLs) and dimming functions are a common hurdle for many LED kits, especially higher-powered ones. Fortunately, the DDM Saber ProX handled these features well in our testing.
We verified that the kit supports DRL operation without flickering or dropouts in vehicles that use reduced-voltage signals for daytime running lights. This is often where cheaper LED kits fall short, but the Saber ProX maintained consistent illumination even in low-voltage DRL circuits.
Dimming compatibility was also solid. While not all vehicles use PWM dimming for headlights or DRLs, the Saber ProX smoothly responded to variable input signals and remained stable across voltage ranges.
If your vehicle uses your low beams as DRLs, or if you’ve had issues with LED kits failing to dim properly in the past, the Saber ProX offers a level of confidence that’s rare in this price and power tier.
While we haven’t completed a full long-term runtime test on the Saber ProX yet, initial build quality and early performance give us good reason to expect strong durability.
The bulbs are built with a robust aluminum housing, copper thermal pads, and a dual-ball-bearing fan system that held up well during extended heat soak testing. Even after 30+ minutes of continuous use, the thermal performance remained stable with no flickering, output loss, or overheating.
The cooling system is especially effective considering the high 65W power level, and based on internal temps hovering around 119°F, we expect degradation over time to be minimal.
DDM rates the Saber ProX for a lifespan of approximately 3200 hours, which translates to around 10 years of average use. This is on par with premium LED kits in the $200+ range and exceeds what we typically see from mid-range products.
We’ll update this section once full lifespan testing is complete, but based on construction and thermal behavior, the Saber ProX is clearly built for longevity.
DDM Tuning backs the Saber ProX with a 2-year warranty, which is solid coverage for a high-output LED kit in this price range.
While it doesn’t offer the lifetime coverage seen on a few premium brands, 2 years is more than reasonable—especially considering the Saber ProX is operating at 65W per side, which adds more thermal and electrical stress than typical 25–35W kits. In most cases, any issues with LED degradation, CANBUS errors, or fan failures will show up well within that window.
DDM also has a good track record of customer support and warranty fulfillment, based on our experience and user feedback over the years. If anything goes wrong within the warranty period, they’re generally responsive and quick to replace.
At around $220, the DDM Tuning Saber ProX isn’t aimed at the bargain shopper—but it delivers performance and quality that justify the price. For that investment, you're getting one of the brightest kits we've tested, especially in reflector housings, where it outperforms many well-known competitors.
This kit checks nearly every box: high output, low glare, solid projector performance, strong CANBUS support, and dependable cooling. You’re also getting a 2-year warranty and the backing of a company with a long-standing reputation in the lighting space.
If you’re looking for a high-powered LED upgrade that prioritizes real-world performance and reliability, the Saber ProX offers excellent value for serious drivers who want results—not marketing gimmicks.
The DDM Tuning 65W Saber ProX is one of the few LED kits that actually lives up to its bold power claims. It delivers impressive brightness, excellent beam control in reflector housings, and solid performance across the board—all without sacrificing safety or compatibility.
While it may not be the absolute top performer in projector headlights, it still holds its own and outshines most mid-tier options. And for reflector setups, it’s currently the best overall performer we’ve tested. Add in full CANBUS support, strong thermal stability, and a 2-year warranty, and you’ve got a premium-level LED kit that justifies the price.
If you’re upgrading from halogen and want a major jump in visibility without the headaches that come from cheap or poorly engineered kits, the Saber ProX should be high on your list. It’s bright, focused, and built to last.
*Facts listed above are based on current testing processes at the time of this review, see how we test for details on our latest testing procedures. Test procedure 2.0 (25'), and glare at 9' distance, 2.64" up from center focal, 2.85" left from center focal.
